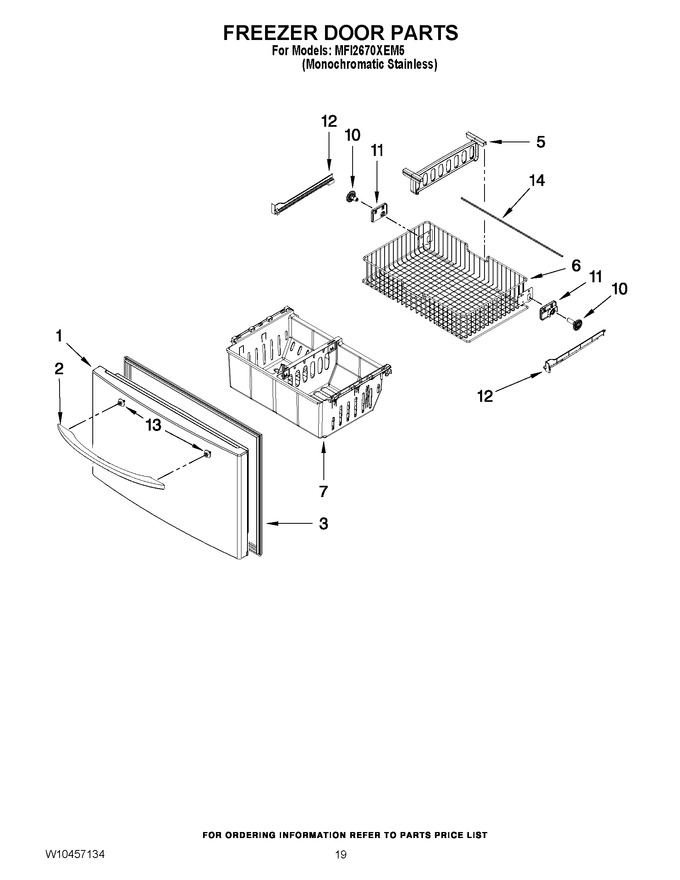

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12977863SQ		Freezer Door (stainless)   (Replaces: 12977863S)				$ 1,020.54
2	W10252300		Handle, Door (stainless)				$ 118.03
3	WPW10714545		Gasket, Door (stainless)   (Replaces: W10164045)				$ 323.60
5	W10146439		Divider, Upper Basket				$ 32.66
6	W11218042		Basket, Upper   (Replaces: W10348249)				$ 203.43
7	WPW10293682		Bin, Lower   (Replaces: W10293682)				$ 181.18
10	WPW10474715		Gear Spur (left)   (Replaces: W10146446)			Immediately	$ 32.76
10	WPW10474716		Gear Spur (right)   (Replaces: W10158749)			Immediately	$ 32.42
11	W10348260		Gear Mount (right)				$ 89.90
11	W10348259		Gear Mount (left)				$ 89.87
12	W11489993		Rack (left)   (Replaces: W10284694)				$ 23.46
12	W11489994		Rack (right)   (Replaces: W10284695)				$ 23.46
13	WPW10288153		Screw, Handle (shoulder)   (Replaces: W10288153)			Immediately	$ 9.65
14	W11173556		Shaft-rack   (Replaces: 12812904WD)				$ 32.38
