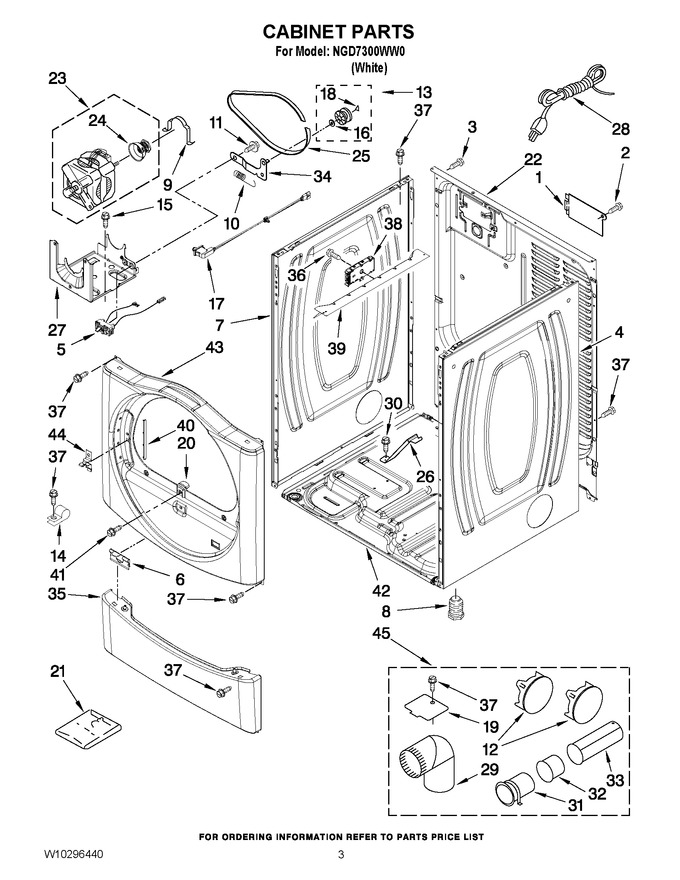

02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8576353 Burner Assembly
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10819767 | Cover, Terminal Block (Replaces: 8317340) |
|
- | |||||
| 2 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 3390814) |
|
Immediately | $ 8.25 | ||||
| 3 | W10850756 | Screw, Ground (Replaces: 8533974) |
|
$ 8.20 | |||||
| 4 | W10542714 | Panel, Side (r.h.) (Replaces: 8565048) |
|
$ 350.58 | |||||
| 5 | WPW10411937 | Switch, Broken Belt (Replaces: W10246525) |
|
Immediately | $ 36.06 | ||||
| 6 | W11295573 | Clip, Toe Panel (Replaces: 8519459) |
|
$ 22.17 | |||||
| 7 | W10542714 | Panel, Side (l.h.) (Replaces: 8565054) |
|
$ 350.58 | |||||
| 8 | 49621 | Foot - Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 | ||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WP660658 | Clamp, Motor (2) (Replaces: 660658) |
|
$ 8.22 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 25.80 | ||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | WPW10404617 | Plug, Multivent (Replaces: 49252) |
|
$ 75.58 | |||||
| 13 | 279640 | Pulley Assembly (Replaces: 3388672) |
|
Immediately | $ 32.51 | ||||
| 14 | 3978776 | Bracket, Gas Pipe |
|
- | |||||
| 15 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 16 | WP233520 | Washer, Thrust (Replaces: 233520) |
|
Immediately | $ 8.36 | ||||
| 17 | W10128087 | Assembly, Door Switch |
|
$ 95.53 | |||||
| 18 | WPW10121334 | Tri-ring (Replaces: W10121334) |
|
Immediately | $ 7.55 | ||||
| 19 | WPW10354249 | Cover, Plate (Replaces: 8066115) |
|
$ 9.41 | |||||
| 20 | 8565083 | Ramp, Door |
|
- | |||||
| 21 | 8572546 | Kit, Stack Assembly |
|
Immediately | $ 84.63 | ||||
| 22 | 8565059 | Panel, Rear |
|
$ 244.90 | |||||
| 23 | 279787 | Motor Assembly 60 Hz. (Replaces: 8538263) |
|
Immediately | $ 235.65 | ||||
| 24 | W10837625 | Pulley 60 Hz. (Replaces: 8578220) |
|
Immediately | $ 12.77 | ||||
| 25 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 32.81 | ||||
| 26 | W10181903 | Bracket, Burner (Replaces: 8529757) |
|
- | |||||
| 27 | W11481730 | Bracket, Motor (Replaces: W10242878) |
|
Immediately | $ 94.84 | ||||
| 28 | W11628810 | Cord, Power (Replaces: 3401401) |
|
$ 101.90 | |||||
| 29 | WPW10416072 | 4`` - 90° Elbow (Replaces: 49026) |
|
$ 28.16 | |||||
| 30 | WP693995 | Screw, 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 31 | WP8563747 | Exhaust Pipe & Bracket (Replaces: 8563747) |
|
$ 95.95 | |||||
| 32 | WPW10331278 | Exhaust Pipe (short) (Replaces: 8563750) |
|
$ 82.90 | |||||
| 33 | WP8563749 | Exhaust Pipe (long) (Replaces: 8563749) |
|
$ 93.24 | |||||
| 34 | W10837240 | Idler Bracket (Replaces: 3388674) |
|
Immediately | $ 35.78 | ||||
| 35 | WP8540621 | Toe Panel (Replaces: 8540621) |
|
$ 189.38 | |||||
| 36 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 37 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 38 | W10235613 | Control Board |
|
$ 288.51 | |||||
| 39 | WP8563727 | Control Bracket (Replaces: 8563727) |
|
$ 179.69 | |||||
| 40 | W10085210 | Plug-strip Front Panel |
|
$ 85.03 | |||||
| 41 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 42 | W11215531 | Base, Cabinet (Replaces: 8565046) |
|
$ 365.36 | |||||
| 43 | 8565070 | Front Panel |
|
$ 183.27 | |||||
| 44 | WP8565122 | Strike, Door (1) (Replaces: 8565122) |
|
Immediately | $ 8.65 | ||||
| NI | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (white) (Replaces: 279818) |
|
Immediately | $ 76.65 |
