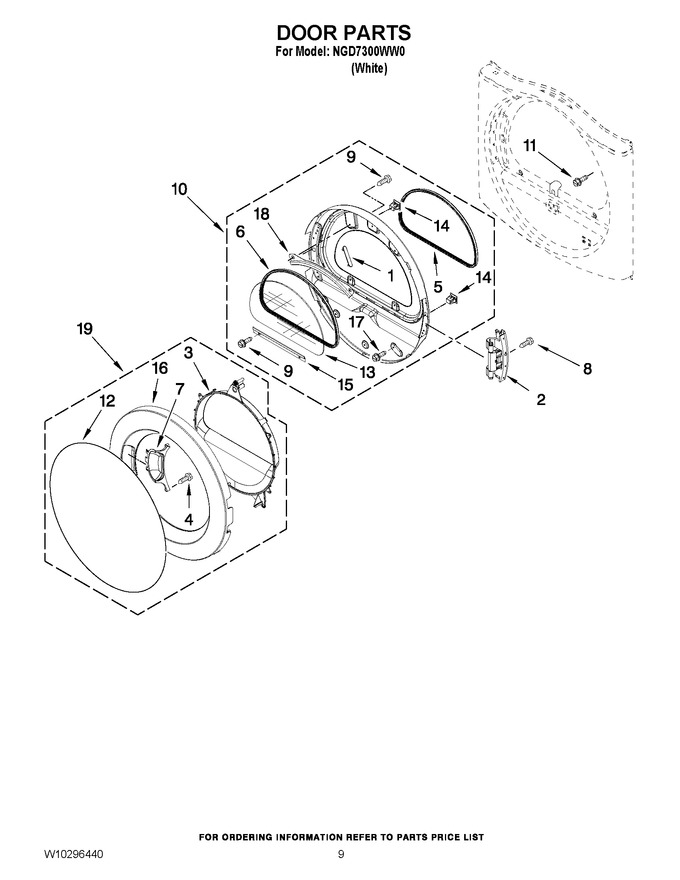

05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10256915 | Label, Hinge Hole Cover (Replaces: W10256915) |
|
$ 82.07 | |||||
| 2 | WPW10304672 | Door, Hinge Assembly (Replaces: 8578887) |
|
Immediately | $ 232.48 | ||||
| 3 | W10283424 | Door, Intermediate (Replaces: W10215738) |
|
- | |||||
| 4 | W10850046 | Screw, 8-18 X 5/8 (Replaces: 9742177) |
|
Immediately | $ 7.55 | ||||
| 5 | WPW10163915 | Seal, Door (Replaces: W10163915) |
|
Immediately | $ 87.42 | ||||
| 6 | W11706993 | Seal, Window (Replaces: 8579663) |
|
$ 28.22 | |||||
| 7 | W10215754 | Handle Pocket |
|
$ 85.95 | |||||
| 8 | WPW10159996 | Screw, 10-24 X 3/64 (Replaces: W10159996) |
|
$ 8.52 | |||||
| 9 | WP3373329 | Screw (Replaces: 3393258) |
|
$ 8.52 | |||||
| 10 | W10270216 | Door Assembly Inner (includes Illus. 14) |
|
$ 141.94 | |||||
| 11 | WP355515 | Screw, 8-18 X 11/16 (Replaces: 355515) |
|
$ 8.48 | |||||
| 12 | W10215741 | Screen, Door |
|
- | |||||
| 13 | WPW10286878 | Window (Replaces: W10286878) |
|
$ 274.76 | |||||
| 14 | 279570 | Door Catch Assembly (Replaces: 690081) |
|
Immediately | $ 8.89 | ||||
| 15 | W10822054 | Retainer (lower) (Replaces: 8519354) |
|
Immediately | $ 18.01 | ||||
| 16 | W10215742 | Door, Outer |
|
$ 353.97 | |||||
| 17 | WP8534022 | Screw (Replaces: 8534022) |
|
$ 8.37 | |||||
| 18 | 8519356 | Retainer (upper) |
|
- | |||||
| 19 | W10215753 | Door Assembly Outer |
|
$ 285.86 |
