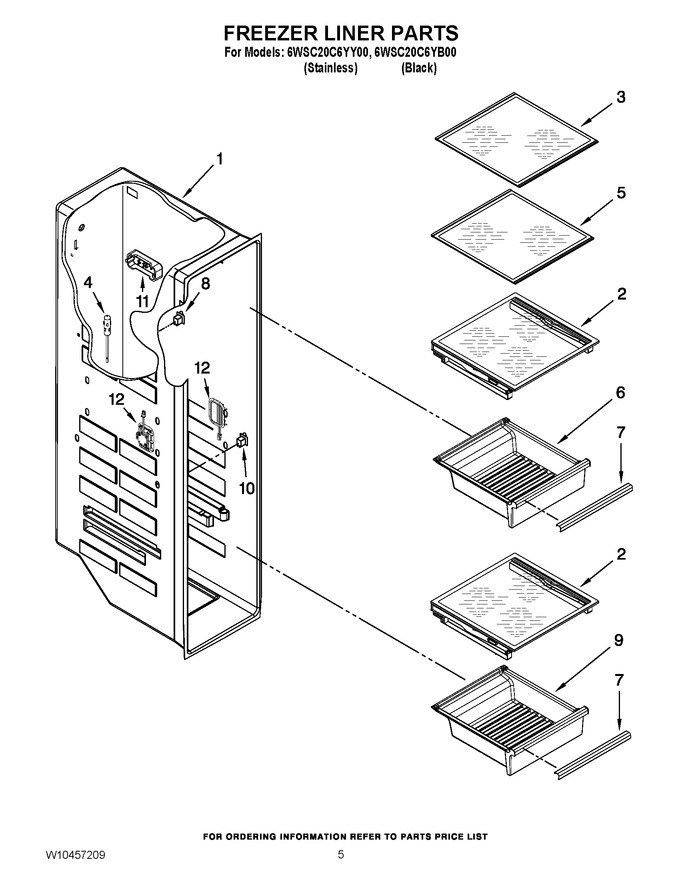

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	W10260977		Cover Assy		Appelez-nous	-
3	WPW10269160		Shelf, Glass Upper   (Replaces: W10269160)				$ 158.82
4	W11724692		Thermistor   (Replaces: W10280386)			Immediately	$ 33.60
5	W11098699		Shelf, Glass Lower   (Replaces: W10269161)				$ 227.34
6	W10256858		Pan, Freezer Upper Also Order 7		Appelez-nous	-
7	W10281629		Trim, Handle		Appelez-nous	-
8	W11123943		Switch, Rocker Arm Ice Maker   (Replaces: 2149954)				$ 36.66
9	W10256861		Pan, Freezer Lower Also Order 7		Appelez-nous	-
10	W11457217		Switch, Rocker Arm Light   (Replaces: 2321285)				$ 40.09
11	W10425253		Cover, Thermistor		Appelez-nous	-
12	W11683241		Led Light Assy   (Replaces: W10279030)			Immediately	$ 271.97
