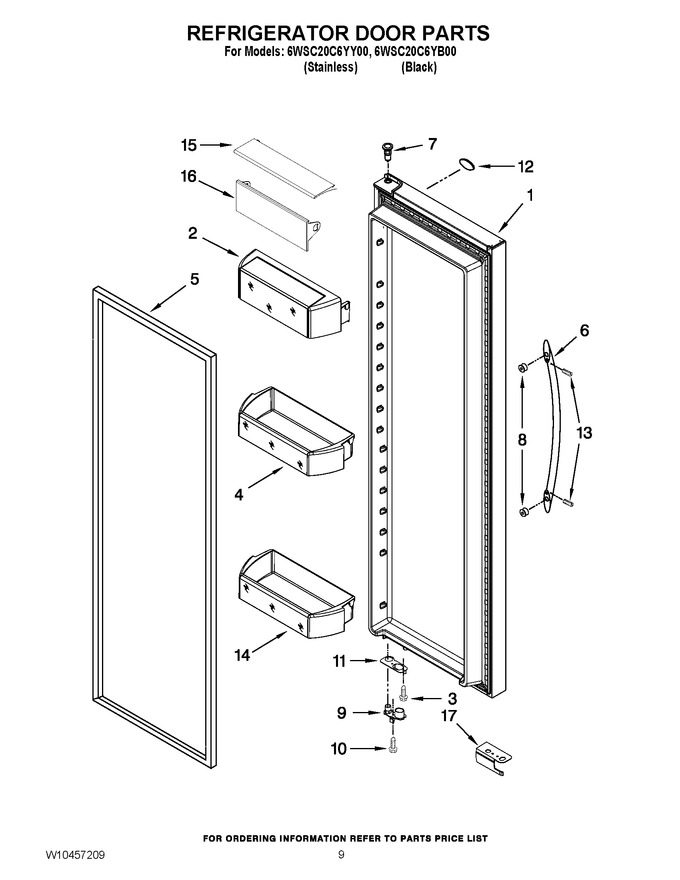

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10287388		Refrigerator Door (includes Item 5) (black)		Appelez-nous	-
1	W10445107		Refrigerator Door (includes Item 5) (stainless)		Appelez-nous	-
2	W10336573		Door Compartment Assembly		Appelez-nous	-
3	WPW10296816		Screw   (Replaces: W10296816)				$ 8.06
4	W10335221		Door Bin, Shallow				$ 35.30
5	WPW10249912		Door Gasket, (black Magnetic)   (Replaces: W10249912)				$ 329.18
5	W10355582		Door Gasket, (apollo Grey)   (Replaces: W10249916)				$ 341.26
6	WPW10268057		Handle (black)   (Replaces: W10268057)				$ 174.11
6	WPW10670421		Handle (stainless)   (Replaces: W10274730)				$ 254.15
7	WP2182181		Thimble-top   (Replaces: 2200086)				$ 8.15
8	WPW10170540		Stud, Handle   (Replaces: W10170540)			Immediately	$ 8.51
9	WPW10257201		Door Closer, Upper Cam (black)   (Replaces: W10257201)				$ 12.93
9	WPW10257203		Door Closer, Upper Cam (apollo Grey)   (Replaces: W10257203)				$ 12.96
10	WPW10296804		Screw   (Replaces: W10296804)				$ 11.39
11	W11037957		Bracket, Door Stop   (Replaces: W10367462)				$ 80.24
12	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 93.18
13	W11366418		Set Screw   (Replaces: W10010140)			Immediately	$ 15.79
14	WPW10335220		Door Bin, Gallon   (Replaces: W10335219)				$ 93.59
15	WPW10316883		Lid, Compartment   (Replaces: W10316883)				$ 67.67
16	W10336570		Window, Door Compartment				$ 30.07
17	W10257216		Cover, Door Stop (black)		Appelez-nous	-
17	W11661847		Cover, Door Stop (apollo Grey)   (Replaces: W10257218)			Immediately	$ 31.71
