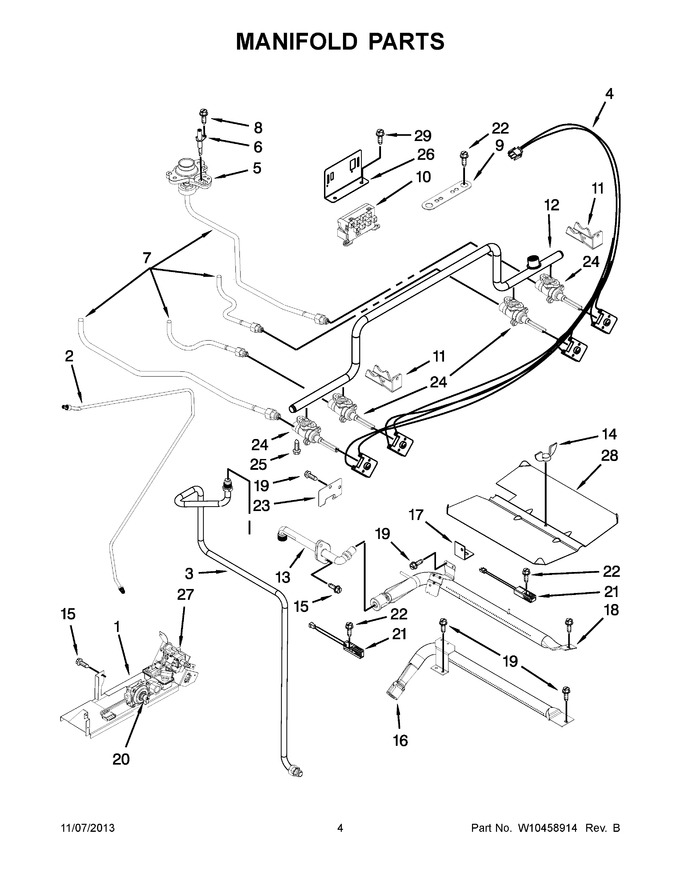

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10271712 | Cover, Burner Valve |
|
- | |||||
| 2 | 7506P535-60 | Tubing, Gas Supply |
|
$ 98.64 | |||||
| 3 | 7506P536-60 | Tube, Broil |
|
- | |||||
| 4 | 7450P128-60 | Harness, Valve (includes Switches) |
|
- | |||||
| 5 | 74010961 | Holder, Orifice (12k) (left Front) (Replaces: 7527P082-60) |
|
$ 113.33 | |||||
| 5 | 7527P083-60 | Holder, Orifice (9.2k) (right Rear) |
|
- | |||||
| 5 | WPW10407680 | Holder, Orifice (5k) (left Rear) (Replaces: 7527P084-60) |
|
$ 115.09 | |||||
| 5 | WPW10407678 | Holder, Orifice (16k) (right Front) (Replaces: 7527P081-60) |
|
$ 126.04 | |||||
| 6 | WPW10110378 | Ignitor, Orifice (Replaces: W10110378) |
|
Immediately | $ 54.71 | ||||
| 7 | 7506P521-60 | Tube, Burner (right Front) |
|
- | |||||
| 7 | 7506P522-60 | Tube, Burner (left Front) |
|
- | |||||
| 7 | 7506P523-60 | Tube, Burner (right Rear) |
|
- | |||||
| 7 | 7506P524-60 | Tube, Burner (left Rear) |
|
- | |||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 9 | W10160530 | Retainer, Base |
|
- | |||||
| 10 | WP7431P064-60 | Module, Spark (Replaces: 7431P064-60) |
|
$ 324.44 | |||||
| 11 | W10160655 | Bracket, Manifold |
|
- | |||||
| 12 | W10177097 | Pipe, Manifold (Replaces: 7513P536-60) |
|
- | |||||
| 13 | WP74010901 | Fitting, Broiler (Replaces: 7507P407-60) |
|
$ 87.75 | |||||
| 14 | 7103P030-60 | Nut, Wing |
|
$ 7.43 | |||||
| 15 | W10185612 | Screw |
|
$ 7.08 | |||||
| 16 | 7505P254-60 | Burner, Bake |
|
- | |||||
| 17 | 3807F480-45 | Support, Bake Burner |
|
$ 17.01 | |||||
| 18 | 7505P293-60 | Burner, Broiler |
|
$ 89.91 | |||||
| 19 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 20 | WP74006035 | Valve/regulator (Replaces: 7510P079-60) |
|
$ 308.75 | |||||
| 21 | 74007498 | Ignitor (bake/broil) (Replaces: 7432P106-60) |
|
Immediately | $ 87.11 | ||||
| 22 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 5.07 | |||||
| 23 | 4005F421-45 | Cover, Ignitor Wire |
|
- | |||||
| 24 | WPW10290838 | Valve, Burner (16k) (left Front, Right Front & Right Rear) (Replaces: W10290838) |
|
$ 285.40 | |||||
| 24 | W10836481 | Valve, Burner (5k) (left Rear) (Replaces: W10290839) |
|
$ 138.93 | |||||
| 25 | W11233072 | Screw (Replaces: 7101P338-60) |
|
Immediately | $ 14.72 | ||||
| 26 | 3807F752-45 | Support, Spark Module |
|
$ 27.55 | |||||
| 27 | WP7501P232-60 | Valve, Safety (Replaces: 7501P232-60) |
|
Immediately | $ 353.41 | ||||
| 28 | 3601F307-45 | Baffle, Broil Burner |
|
$ 200.26 | |||||
| 28 | 3601F239-45 | Baffle, Bake Burner |
|
- | |||||
| 29 | WP98008545 | Screw (black) (Replaces: 7101P633-60) |
|
$ 18.60 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10168551 | Spuds, Lp Gas (kit Of 4) |
|
$ 46.31 |
