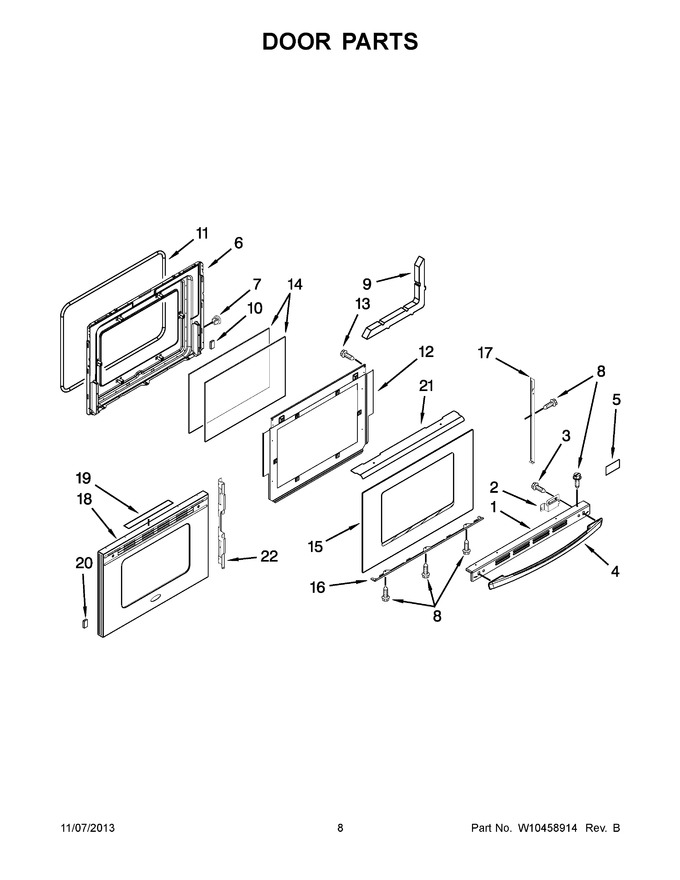

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3608F141-70		Trim, Top (black)				$ 96.37
2	3801F831-45		Bracket, Handle (right)				$ 22.37
2	3801F832-45		Bracket, Handle (left)				$ 22.30
3	W11347848		Screw   (Replaces: 7101P376-60)				$ 14.23
4	W10118431		Handle, Door (black)				$ 220.75
4	WPW10144883		Handle, Door (stainless)   (Replaces: W10144883)				$ 252.66
5	W11178521		Badge (grey)   (Replaces: W10481433)			Immediately	$ 63.13
6	2402W312-19		Lining, Door				$ 144.50
7	WP74001574		Nut, Snap (black)   (Replaces: 7103P141-60)			Immediately	$ 11.74
8	WP98008545		Screw (black)   (Replaces: 7101P633-60)				$ 18.60
8	W11233072		Screw (stainless)   (Replaces: 7101P638-60)			Immediately	$ 14.72
9	7002P246-60		Insulation, Oven Door				$ 58.49
10	WP74005546		Spacer, Rubber   (Replaces: 8010P130-60)				$ 11.06
11	WPW10162384		Gasket, Door   (Replaces: W10162384)			Immediately	$ 86.23
12	3601F373-51		Baffle, Oven Door Window				$ 284.93
13	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
14	74003645		Glass, Inner   (Replaces: 7902P436-60)			Immediately	$ 180.59
15	7902P815-60		Glass, Door (black)		Appelez-nous	-
16	3807F708-70		Support, Glass (black)				$ 63.97
17	3608F116-70		Trim, Door Side (black (right Hand))				$ 49.75
17	3608F117-70		Trim, Door Side (black (left Hand))				$ 49.73
18	W10494091		Panel, Oven Door (stainless)				$ 237.94
19	74011048		Insulation, Foil   (Replaces: 7002P463-60)				$ 83.69
20	7112P034-60		Clip, Door Glass		Appelez-nous	-
21	3604F418-51		Shield				$ 77.46
22	3804F293-45		Retainer, Glass				$ 16.56
