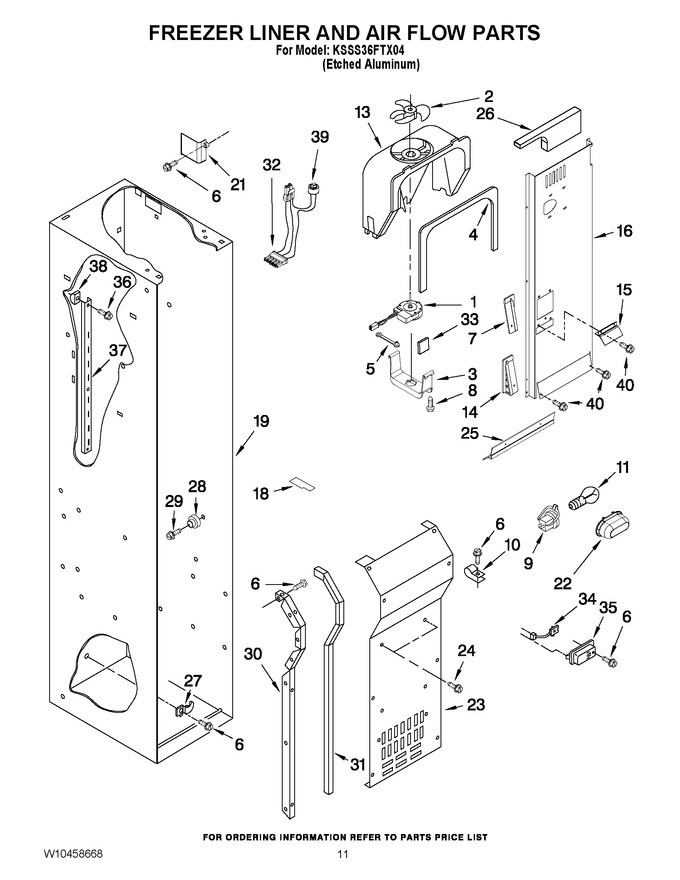

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2259385 | Fan Motor |
|
$ 84.74 | |||||
| 2 | WP2169142 | Fan Blade (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 3 | 8201663 | Retainer, Fan Motor (Replaces: 2223733) |
|
$ 159.27 | |||||
| 4 | WP2302817 | Gasket, Cover (Replaces: 2302816) |
|
$ 101.04 | |||||
| 5 | W11669856 | Grommet (Replaces: W10449920) |
|
Immediately | $ 15.93 | ||||
| 6 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 7 | 2259464 | Wedge, Air Duct |
|
$ 95.38 | |||||
| 8 | WPW10141604 | Screw, Ground (Replaces: W10141604) |
|
$ 8.85 | |||||
| 9 | WPW10191429 | Socket, Light (Replaces: 2223857) |
|
$ 8.80 | |||||
| 10 | 489348 | Clamp-nylon |
|
- | |||||
| 11 | WPA3073101 | Light Bulb (Replaces: 2326255) |
|
Immediately | $ 12.72 | ||||
| 13 | W11254898 | Scroll, Fan (Replaces: 2182119) |
|
Immediately | $ 339.43 | ||||
| 14 | 2259465 | Wedge, Air Duct |
|
- | |||||
| 15 | 2266801 | Deflector, Air |
|
- | |||||
| 16 | 2307776 | Air Duct |
|
- | |||||
| 18 | 2209481 | Block, Fan Scroll (rh) |
|
- | |||||
| 18 | 2209066 | Block, Fan Scroll (lh) |
|
- | |||||
| 19 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 21 | 2259025 | Cover, Air Outlet |
|
$ 92.36 | |||||
| 22 | 2307751 | Light Shield |
|
$ 17.27 | |||||
| 23 | W10158000 | Cover, Evaporator |
|
- | |||||
| 24 | WP8281163 | Screw (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 25 | 2302849 | Support, Air Duct |
|
- | |||||
| 26 | 2309282 | Deflector, Air Duct |
|
- | |||||
| 27 | 1112260 | Support,evaporator |
|
- | |||||
| 28 | W11527119 | Shelf, Stud (Replaces: W10173127) |
|
- | |||||
| 29 | W10191952 | Screw |
|
$ 5.65 | |||||
| 30 | 2221107 | Evaporator, Cover Rail (left Side) |
|
- | |||||
| 30 | 2259355 | Evaporator, Cover Rail (right Side) |
|
$ 126.54 | |||||
| 31 | 2220904 | Gasket Evaporator Cover |
|
$ 23.55 | |||||
| 32 | W10139189 | Harness, Evap Fan (includes Item 39) |
|
$ 168.77 | |||||
| 33 | W10267707 | Insulation |
|
- | |||||
| 34 | WP2188820 | Thermistor (Replaces: 2188820) |
|
Immediately | $ 30.85 | ||||
| 35 | WP2317844 | Cover, Thermistor (Replaces: 2317105) |
|
$ 11.38 | |||||
| 36 | 2006475 | Screw, |
|
- | |||||
| 37 | WP2259032 | Ladder, Shelf (Replaces: 2259032) |
|
$ 81.02 | |||||
| 38 | 2259397 | Support, Screw |
|
- | |||||
| 39 | WPW10160570 | Defrost, Bi-metal (Replaces: W10160570) |
|
Immediately | $ 138.98 | ||||
| 40 | WPW10142283 | Screw (Replaces: W10142283) |
|
$ 10.33 |
