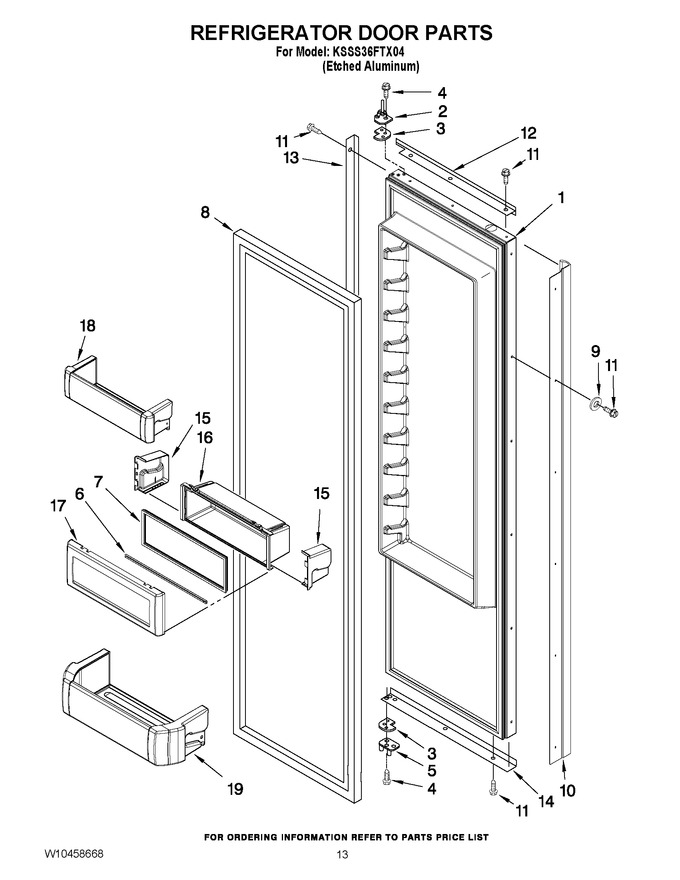

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10193489		Refrigerator Door Panel (includes Item No.8)		Appelez-nous	-
2	W11724512		Hinge Assembly, Top   (Replaces: 2266854)				$ 312.50
3	W11673500		Spacer-door, Top & Bottom   (Replaces: 2316804)			Immediately	$ 108.07
4	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
5	2302878		Hinge Assembly, Bottom			Immediately	$ 91.01
6	2222795		Rail, Lid				$ 84.11
7	WP2222981		Gasket, Utility Bin   (Replaces: 2222981)				$ 214.40
8	WP2266901		Door Gasket, Magnetic   (Replaces: 2222810)				$ 369.84
9	2001230		Washer				$ 12.34
10	2316842S		Handle, Door				$ 224.10
11	WP8281250		Screw, 8-15 X .500 Stainless Steel   (Replaces: 8281250)				$ 11.42
12	2005016		Trim-door, Top		Appelez-nous	-
13	2005969		Trim-door, Side		Appelez-nous	-
14	2215993S		Trim-door, Bottom		Appelez-nous	-
15	WPW10323173		End Cap (lh)   (Replaces: W10323173)				$ 8.60
15	WPW10323172		End Cap (rh)   (Replaces: W10323172)				$ 8.60
16	WPW10323035		Bin, Utility Center   (Replaces: W10323035)				$ 84.93
17	WPW10131132		Door, Utility Bin   (Replaces: W10131132)				$ 75.81
18	W10323598		Door Shelf				$ 104.79
19	W10323746		Shelf, Gallon Door				$ 108.24
