SELECT A DIAGRAM

01 - Cabinet Parts

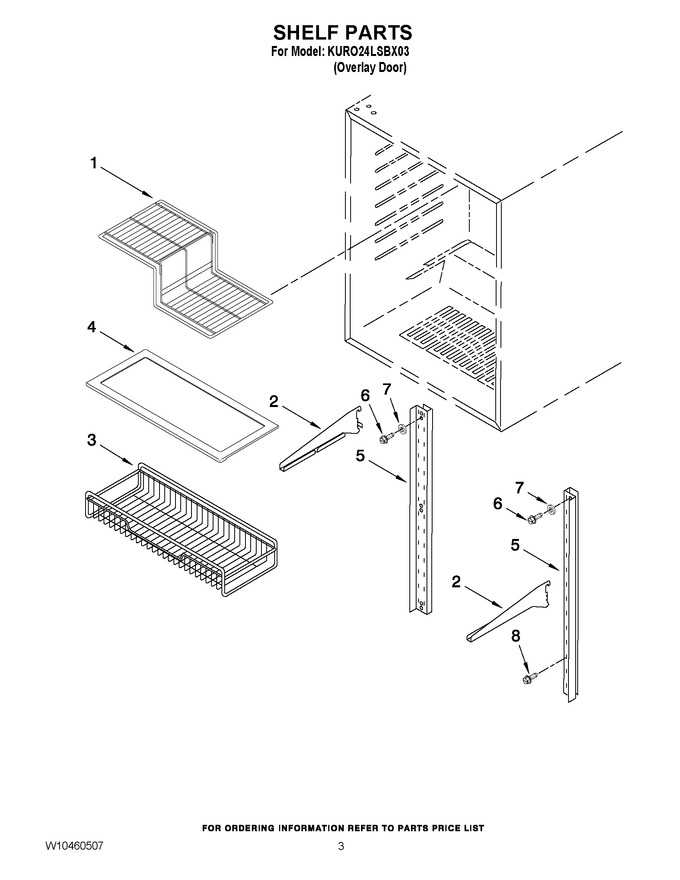

02 - Shelf Parts


03 - Door Parts


04 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4344741		Wire Shelf				$ 102.40
2	4344742		Bracket, Shelf (right Side)				$ 114.32
2	4344743		Bracket, Shelf (left Side)				$ 97.83
3	4344744		Basket, Crisper		Appelez-nous	-
4	4344745		Shelf, Crisper		Appelez-nous	-
5	4344743		Ladder, Shelf (left Side)				$ 97.83
5	4344742		Ladder, Shelf (right Side)				$ 114.32
6	4344794		Screw		Appelez-nous	-
7	4344795		Washer		Appelez-nous	-
8	W10162986		Screw W/washer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
