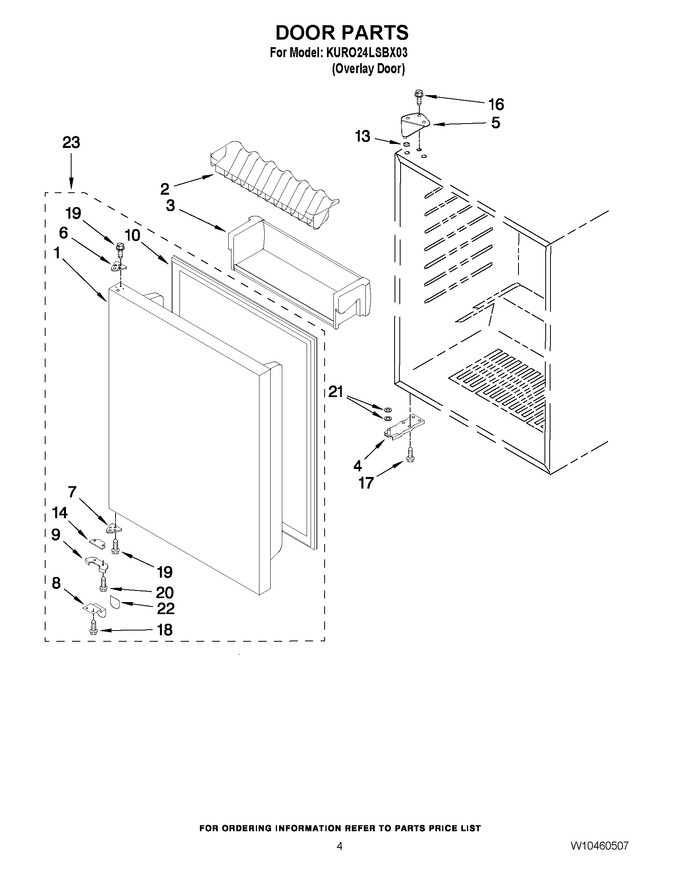

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4344806		Door Assembly		Appelez-nous	-
2	4344751		Beverage Holder				$ 84.46
3	4344752		Door Bin				$ 81.31
4	4344787		Hinge Bottom				$ 217.36
5	4344754		Hinge, Top				$ 89.01
6	4344804		Spacer, Top Hinge				$ 20.03
7	4344798		Spacer Bottom Hinge				$ 20.03
8	4344757		Actuator, Switch				$ 154.08
9	4344802		Door Stop				$ 21.98
10	4344759		Door Gasket		Appelez-nous	-
13	4344760		Washer				$ 15.91
14	4344803		Spacer, Door				$ 175.49
16	4344796		Screw				$ 16.82
17	4344797		Screw, Lower Hinge (quantity 3)		Appelez-nous	-
17	W10243104		Screw, Lower Hinge (quantity 1)		Appelez-nous	-
18	W10837731		Screw   (Replaces: W10204865)				$ 8.30
19	4344800		Screw		Appelez-nous	-
20	4344801		Screw				$ 16.82
21	W11241702		Washer/bottom   (Replaces: W10162992)				$ 14.27
22	W10163191		Gasket-push Plate				$ 14.85
23	W10460832		Door Assy (includes Gasket)		Appelez-nous	-
NI	4344818		Installation Kit, Door Panel				$ 129.52
