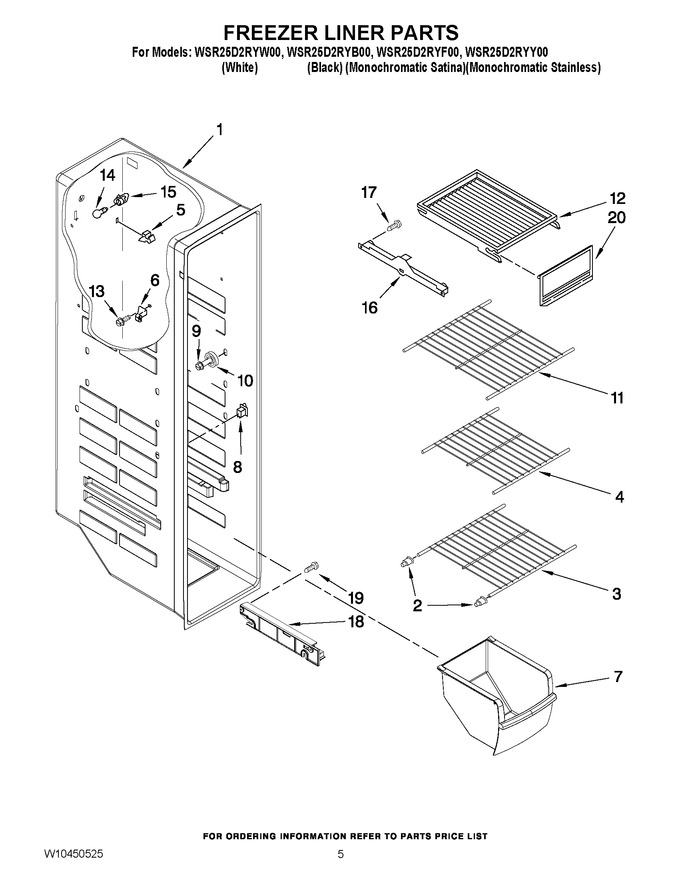

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	2196207		Stud, Shelf Saddle				$ 7.61
3	W10318946		Shelf, Wire				$ 37.05
4	WPW10318947		Shelf, Wire   (Replaces: W10318947)				$ 91.81
5	2215823		Clip, Air Duct   (Replaces: 2315163)				$ 10.94
6	2196206		Support, Stud (4)		Appelez-nous	-
7	WP2182971		Freezer Bin   (Replaces: 2182971)				$ 147.22
8	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 40.09
9	W10191952		Screw				$ 5.65
10	W11527119		Stud Assembly   (Replaces: W10173127)		Appelez-nous	-
11	W10378918		Shelf-wire		Appelez-nous	-
12	2171714		Shelf, Top Compartment		Appelez-nous	-
13	W10142289		Screw				$ 9.61
14	W11679940		Light Bulb   (Replaces: W10311505)			Immediately	$ 11.30
15	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 115.67
16	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 139.41
16	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 130.12
17	718257		Screw (4)   (Replaces: 489100)		Appelez-nous	-
18	2261449		Track, Basket (right)				$ 46.07
18	2261448		Track, Basket (left)				$ 46.07
19	W10142289		Screw				$ 9.61
20	WP2171713		Door, Icemaker   (Replaces: 2171713)				$ 91.63
