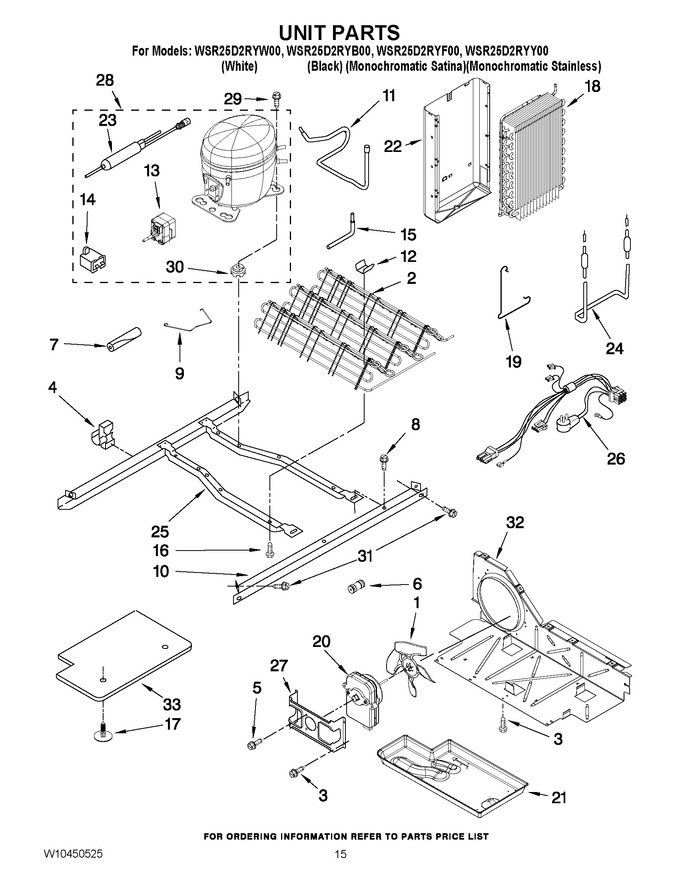

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10156818 | Fan, Blade (Replaces: 12825802) |
|
Immediately | $ 62.11 | ||||
| 2 | 2324712 | Condenser Assembly |
|
$ 323.45 | |||||
| 3 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 11.21 | |||||
| 4 | 2208280 | Clip, Wire |
|
- | |||||
| 5 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 11.21 | |||||
| 6 | W10271542 | Connector |
|
$ 13.51 | |||||
| 7 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 21.32 | ||||
| 8 | WP489427 | Screw (Replaces: W10146358) |
|
$ 7.84 | |||||
| 9 | W10204187 | Clip, Retaining |
|
- | |||||
| 10 | WPW10196323 | Unit Mounting Rail (Replaces: W10196323) |
|
$ 124.89 | |||||
| 11 | 2205765 | Tube Suction |
|
$ 36.04 | |||||
| 12 | W10683556 | Clip, Condenser (Replaces: 2216914) |
|
$ 19.38 | |||||
| 13 | WPW10189190 | Start-device, Combination (start Relay And Overload) (Replaces: W10197427) |
|
Immediately | $ 131.29 | ||||
| 14 | WPW10662129 | Capacitor (Replaces: 2264017) |
|
Immediately | $ 58.86 | ||||
| 15 | W10325116 | Process Tube |
|
- | |||||
| 16 | W11544659 | Screw (Replaces: 8281232) |
|
$ 14.35 | |||||
| 17 | 489396 | Clip |
|
$ 11.26 | |||||
| 18 | WP2188823 | Evaporator (Replaces: 2188823) |
|
Immediately | $ 381.49 | ||||
| 19 | 2161324 | Clamp |
|
- | |||||
| 20 | WP2188874 | Fan, Motor (Replaces: 2188874) |
|
Immediately | $ 113.96 | ||||
| 21 | WPW10614158 | Tray, Evaporator (Replaces: 1105523) |
|
Immediately | $ 113.18 | ||||
| 22 | 2217194 | Heat Shield |
|
- | |||||
| 23 | WPW10143759 | Drier (Replaces: W10423407) |
|
Immediately | $ 30.78 | ||||
| 24 | WP2323198 | Heater, Defrost (Replaces: 2323198) |
|
Immediately | $ 90.70 | ||||
| 25 | W10196321 | Unit Mounting Frame |
|
- | |||||
| 26 | WPW10309395 | Unit, Harness (includes Power Cord) (Replaces: W10309395) |
|
$ 308.35 | |||||
| 27 | WP2181929 | Fan, Motor Bracket (Replaces: 2181929) |
|
$ 12.93 | |||||
| 28 | W10139462 | Compressor (Replaces: W10120457) |
|
$ 668.33 | |||||
| 29 | W11661574 | Screw (Replaces: 489473) |
|
$ 14.29 | |||||
| 30 | 876811 | Grommet (Replaces: 1100826) |
|
$ 7.79 | |||||
| 31 | 489340 | Screw |
|
- | |||||
| 32 | W10896764 | Air Baffle (Replaces: W10411518) |
|
$ 101.20 | |||||
| 33 | 2304899 | Unit Cover, Bottom |
|
- | |||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access (3/16``) |
|
Immediately | $ 95.92 | ||||
| NI | N/P | Refrigerant Charge (5.0 Oz. (r-134a)) |
|
- | |||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 |
