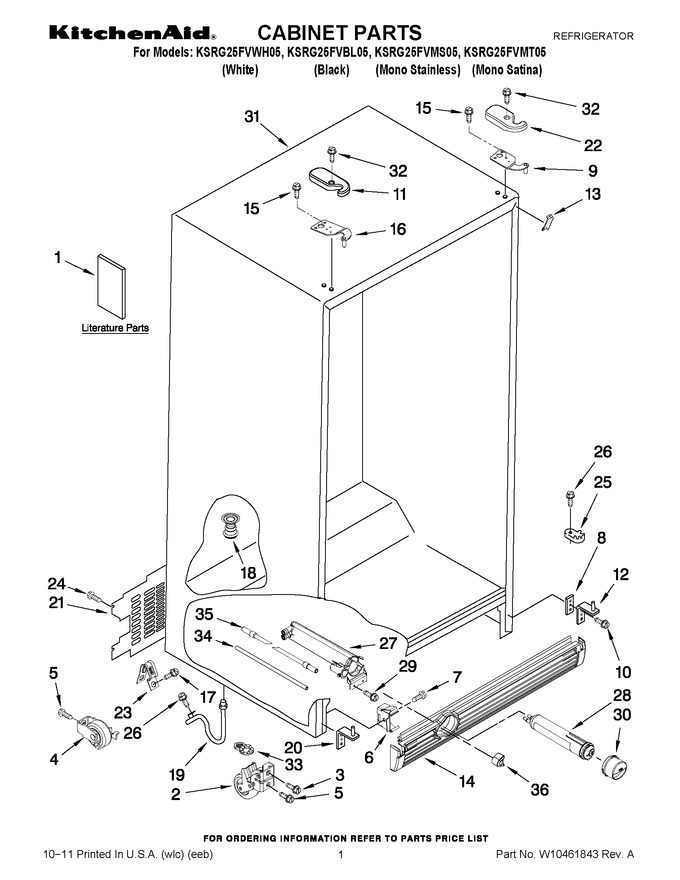

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Refrigerator Door Parts


06 - Freezer Door Parts


07 - Dispenser Front Parts


08 - Air Flow Parts


09 - Control Parts


10 - Unit Parts


11 - Icemaker Parts


12 - Motor And Ice Container Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10305232		Inst Sheet, Door Removal		Appelez-nous	-
1	W10321472		Use & Care Guide		Appelez-nous	-
1	W10238215		Service & Wiring Sheet		Appelez-nous	-
1	W10320895		Energy Guide		Appelez-nous	-
1	2220407		Modular Icemaker Service Sheet		Appelez-nous	-
2	2174748		Front Roller		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 11.88
4	WPW10250570		Roller (rear)   (Replaces: W10250570)				$ 40.17
5	WP489427		Screw   (Replaces: W10146358)				$ 7.47
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	WPW10141604		Screw   (Replaces: W10141604)				$ 8.43
8	WP2181911		Shim   (Replaces: 2156056)				$ 33.21
9	W10242649		Hinge Top Rc		Appelez-nous	-
10	WP489497		Screw   (Replaces: W10142235)			Immediately	$ 29.09
11	W10331626		Hinge Cover, Fc Apollo Grey		Appelez-nous	-
11	W10331628		Hinge Cover, Fc (black)		Appelez-nous	-
11	W10331627		Hinge Cover, Fc (white)		Appelez-nous	-
12	W10219817		Hinge, Bottom (rc)		Appelez-nous	-
13	2304846		Filler, Wrapper (white)		Appelez-nous	-
13	W10143043		Filler, Wrapper (apollo Grey)		Appelez-nous	-
13	2304848		Filler, Wrapper (black)		Appelez-nous	-
14	W10184886		Grille (white)				$ 67.61
14	WPW10184888		Grille (black)   (Replaces: W10184888)				$ 209.51
14	WPW10184890		Grille (apollo Grey)   (Replaces: W10184890)				$ 158.70
15	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
16	W10242650		Hinge Top, Fc		Appelez-nous	-
17	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 7.83
18	W11566763		Drain Fitting   (Replaces: 2304888)			Immediately	$ 50.90
19	W11512417		Tube, Extension   (Replaces: W10153550)				$ 34.79
20	2303141		Hinge Bottom (fc)				$ 248.57
21	WP2188755		Cover, Unit   (Replaces: 2188735)				$ 135.91
22	W10331623		Hinge Cover, Rc (white)		Appelez-nous	-
22	W10331624		Hinge Cover, Rc (black)		Appelez-nous	-
22	W10331630		Hinge Cover, Rc (apollo Grey)		Appelez-nous	-
23	549193		Clamp, Service Cord				$ 13.39
24	WPW10141645		Screw   (Replaces: W10141645)				$ 7.67
25	W11049959		Door Closer, Lower Cam   (Replaces: W10140528)				$ 76.06
26	WP489483		Screw   (Replaces: 489483)				$ 10.87
27	WPW10121138		Housing, Water Filter   (Replaces: 2260507)			Immediately	$ 112.91
28	EDR3RXD1B		Water Filter   (Replaces: 4396841)			Immediately	$ 49.99
29	WP489500		Screw   (Replaces: 489500)				$ 7.78
30	WP2260518B		Cap, Water Filter (black)   (Replaces: 2260502B)			Immediately	$ 28.26
30	WP2260518W		Cap, Water Filter (white)   (Replaces: 2260502W)			Immediately	$ 31.90
30	WP2260518MG		Cap, Water Filter (midnight Grey)   (Replaces: 2260502MG)				$ 56.03
31	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
32	WP8281227		Screw   (Replaces: 8281227)				$ 10.44
33	W11778262		Door Closer, (fc)   (Replaces: 2223751)				$ 11.08
34	WPW10350006		Tube, Filter Outlet   (Replaces: W10330344)				$ 115.54
35	W10281289		Tube, Filter Inlet				$ 57.80
36	2260503MG		Button, Water Filter (midnight Grey)				$ 27.01
36	2260503W		Button, Water Filter (white)			Immediately	$ 34.16
36	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 72.78
