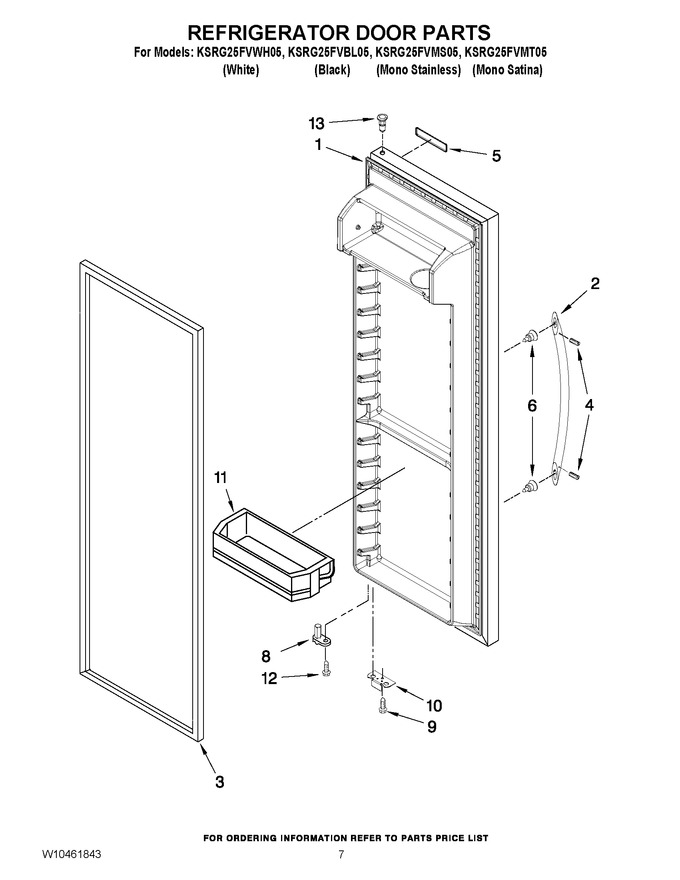

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2313299W		Refrigerator Door (includes No.3) (white)		Appelez-nous	-
1	2313299B		Refrigerator Door (includes No.3) (black)		Appelez-nous	-
1	W10318336		Refrigerator Door (includes No.3) (mono Stainless)		Appelez-nous	-
1	2301184LAP		Refrigerator Door (includes No.3) (mono Satina)		Appelez-nous	-
2	2319727S		Handle (stainless)				$ 133.96
2	2319727W		Handle (white)				$ 106.80
2	2319727B		Handle (black)				$ 109.87
3	WPW10136734		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2326338)				$ 319.42
3	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
3	2159075		Door Gasket, Magnetic (mist)   (Replaces: 2221302)			Immediately	$ 317.14
4	W11366418		Set Screw (chrome)   (Replaces: W10010140)			Immediately	$ 15.79
5	WPW10243393		Nameplate (white)   (Replaces: W10243393)				$ 66.65
5	WPW10243392		Nameplate (black)   (Replaces: W10243392)				$ 70.19
5	WPW10243391		Nameplate (stainless)   (Replaces: W10243391)				$ 55.53
6	WPW10170540		Stud   (Replaces: W10170540)			Immediately	$ 8.51
8	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
9	WPW10142233		Screw   (Replaces: W10142233)				$ 8.39
10	W10219812		Bracket, Door Stop (black)				$ 24.48
10	W10219811		Bracket, Door Stop (chrome)				$ 25.43
11	W10169669		Door Bin				$ 35.96
12	WP3400012		Screw   (Replaces: W10142285)				$ 7.82
13	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
