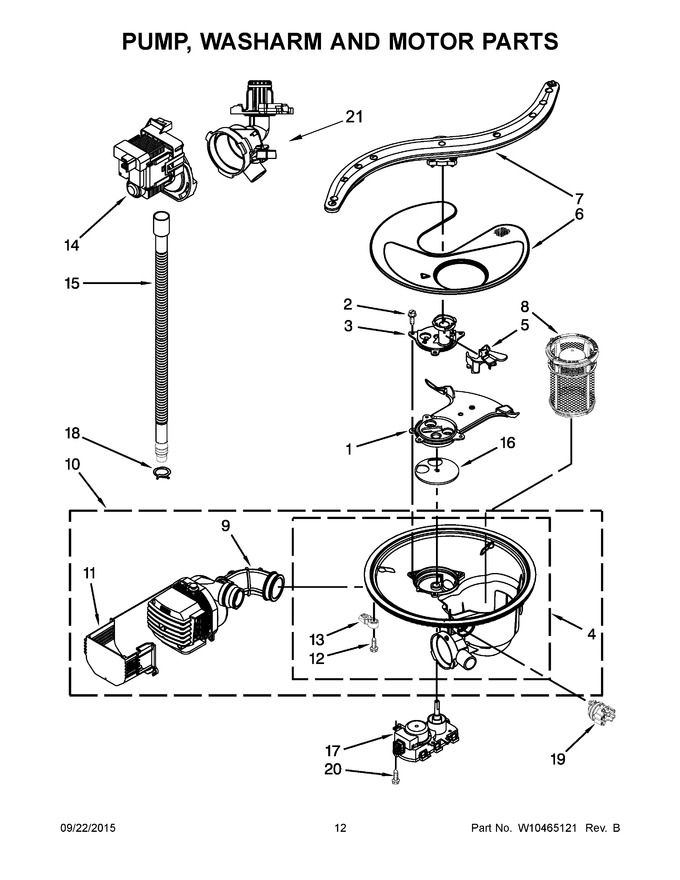

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8579241 | Cover, Sieve |
|
$ 29.55 | |||||
| 2 | W10348405 | Screw |
|
- | |||||
| 3 | W10324447 | Cover, Outlet |
|
$ 27.83 | |||||
| 4 | W10168822 | Sump With Seal (also Includes 2 Clamps) (Replaces: W10208687) |
|
Immediately | $ 214.98 | ||||
| 5 | 8579298 | Retainer, Feed Tube |
|
$ 7.75 | |||||
| 6 | WP8579253 | Screen (Replaces: 8579253) |
|
Immediately | $ 89.50 | ||||
| 7 | WPW10491331 | Wash Arm Assembly (Replaces: W10195665) |
|
Immediately | $ 55.64 | ||||
| 8 | W10872845 | Filter Cup, Assembly (Replaces: W10393351) |
|
Immediately | $ 55.08 | ||||
| 9 | W10168824 | Hose, Inlet (includes 3 Clamps) |
|
$ 177.83 | |||||
| 10 | WPW10418332 | Motor & Sump Assembly (Replaces: W10418331) |
|
Immediately | $ 455.19 | ||||
| 11 | 8579272 | Shield, Motor |
|
$ 85.75 | |||||
| 12 | WPW10348407 | Screw (Replaces: W10348407) |
|
$ 8.06 | |||||
| 13 | WPW10372113 | Tab, Sump (Replaces: W10372113) |
|
Immediately | $ 29.36 | ||||
| 14 | WPW10348269 | Pump, Drain (Replaces: W10158351) |
|
Immediately | $ 97.46 | ||||
| 15 | 8269144A | Hose, Drain (Replaces: 8269144) |
|
Immediately | $ 29.04 | ||||
| 16 | 8579251 | Diverter, Disc Valve |
|
$ 12.46 | |||||
| 17 | W10155344 | Motor, Diverter Valve (Replaces: W10056349) |
|
Immediately | $ 132.94 | ||||
| 18 | WP8269146 | Clamp, Hose (Replaces: 8269146) |
|
$ 8.59 | |||||
| 19 | WPW10705575 | Indicator, Optical Wash (Replaces: W10134017) |
|
Immediately | $ 43.81 | ||||
| 20 | WP9741232 | Screw (Replaces: 9741232) |
|
Immediately | $ 5.07 | ||||
| 21 | WPW10179455 | Drain Assembly, De-coupled (Replaces: W10179455) |
|
Immediately | $ 175.79 |
