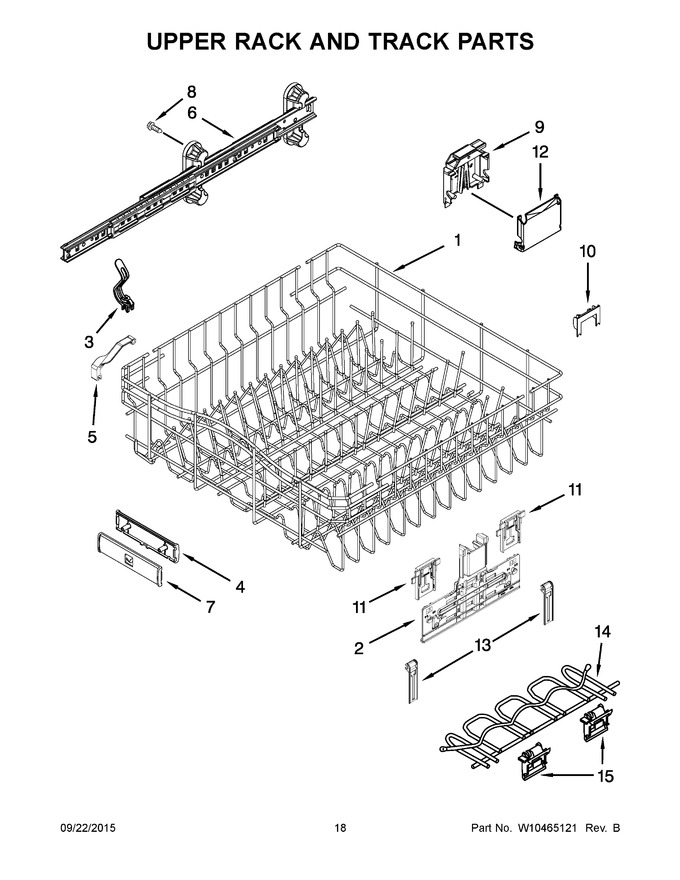

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11661174		Dishrack, Upper   (Replaces: W10194864)				$ 197.59
2	WPW10546503		Adjuster Arm   (Replaces: W10418314)			Immediately	$ 43.81
3	W10238406		Clip, No Flip				$ 9.20
4	W10056298		Handle, Dishrack (rear)		Appelez-nous	-
5	WPW10267076		Clip, Dispenser Guard   (Replaces: W10267076)				$ 31.56
6	W11259786		Track, Assembly (right Hand)   (Replaces: W10311156)			Immediately	$ 84.94
7	W10587967		Handle, Dishrack (front)   (Replaces: W10056297)		Appelez-nous	-
8	WPW10309090		Screw   (Replaces: W10309090)			Immediately	$ 76.86
9	WPW10588165		Housing Adjuster (right Hand)   (Replaces: W10418316)			Immediately	$ 54.81
10	W10418320		Clip Lock			Immediately	$ 12.17
11	WPW10195840		Position Adjuster   (Replaces: W10418323)			Immediately	$ 51.32
12	WPW10250162		Adjuster Cover   (Replaces: W10418321)			Immediately	$ 7.61
13	WPW10195839		Strap, Tether Adjuster   (Replaces: W10418322)			Immediately	$ 30.81
14	W10208697		Cupshelf		Appelez-nous	-
15	W10238407		Mount, Cupshelf				$ 7.82
6A	W11259785		Track, Assembly (left Hand)   (Replaces: W10311157)			Immediately	$ 78.80
9A	WPW10588164		Housing Adjuster (left Hand)   (Replaces: W10418315)			Immediately	$ 16.84

    View Diagram in Separate Window       Print Part List
