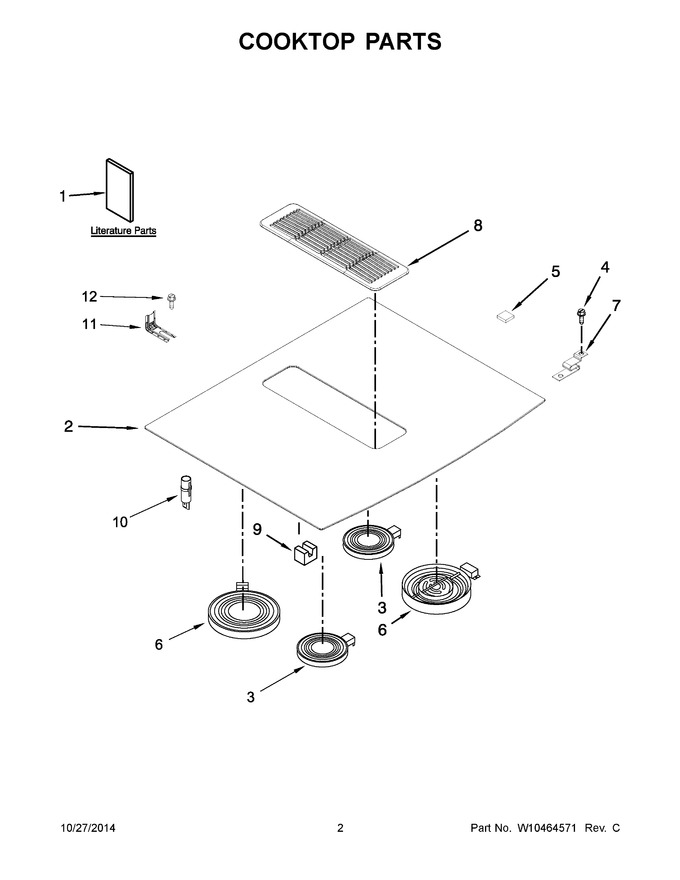

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10430955		Instructions, Intallation		Appelez-nous	-
2	W10239357		Cooktop (black)			Immediately	$ 930.91
3	W11171119		Element (1200w) (left Front And Right Rear)   (Replaces: 8273994)			Immediately	$ 225.62
4	WP7101P498-60		Screw   (Replaces: 7101P498-60)				$ 7.86
5	8010P152-60		Spacer, Rubber		Appelez-nous	-
6	WPW10275049		Element (2500/1200w) (right Front And Left Rear)   (Replaces: W10275049)			Immediately	$ 347.53
7	8004P093-60		Support, Element				$ 10.61
8	7772P050-60		Grill, Air (black)		Appelez-nous	-
9	8255P412-60		Block, Element Support				$ 31.52
10	7407P193-60		Light, Indicator				$ 77.76
11	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 6.11
12	WP7101P485-60		Screw, Anti-tip   (Replaces: 7101P485-60)				$ 30.72
1A	W10430926		Guide, Use & Care		Appelez-nous	-
1B	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1C	W10394693		Diagram, Wiring		Appelez-nous	-
NI	W10394667		Miscellaneous Parts, Harness, Main		Appelez-nous	-
NI	W10298901		Miscellaneous Parts, Harness, Top				$ 141.86
NI	W10394791		Miscellaneous Parts, Harness, Sensor				$ 132.99
NI	5171P557-60		Miscellaneous Parts, Harness, Switch (left)				$ 28.69
NI	5171P550-60		Miscellaneous Parts, Harness, Switch (right)				$ 86.86
NI	WP4159193		Miscellaneous Parts, Screw, Ground   (Replaces: 7101P027-60)				$ 5.07

    View Diagram in Separate Window       Print Part List
