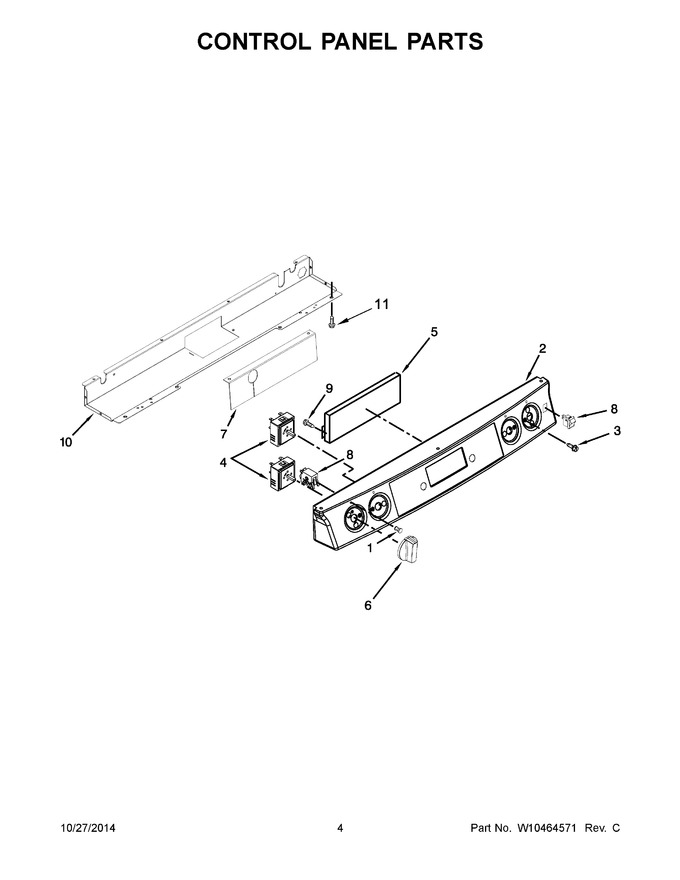

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP22001948 | Lens (Replaces: 7730P031-60) |
|
$ 13.32 | |||||
| 2 | W10314417 | Panel, Control (includes Overlay) (stainless) |
|
$ 479.61 | |||||
| 3 | W11846982 | Screw (Replaces: 7101P676-60) |
|
$ 11.75 | |||||
| 4 | WP74008940 | Switch, Infinite (left Front And Right Rear) (Replaces: 7403P877-60) |
|
Immediately | $ 139.49 | ||||
| 5 | WP8507P234-60 | Control (eoc Iii) (Replaces: W10473900) |
|
Immediately | $ 427.97 | ||||
| 6 | W10213943 | Knob (stainless) |
|
$ 57.35 | |||||
| 7 | 7003P150-60 | Shield, Insulator |
|
- | |||||
| 8 | WP74004153 | Light, Indicator (Replaces: 7407P136-60) |
|
Immediately | $ 8.91 | ||||
| 9 | WP59002061 | Screw (Replaces: 7101P077-60) |
|
$ 8.18 | |||||
| 10 | 3807F731-51 | Support, Control Panel |
|
$ 16.33 | |||||
| 11 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 4A | WP74010824 | Switch, Infinite (right Front And Left Rear) (Replaces: 7450P011-60) |
|
Immediately | $ 114.32 |
