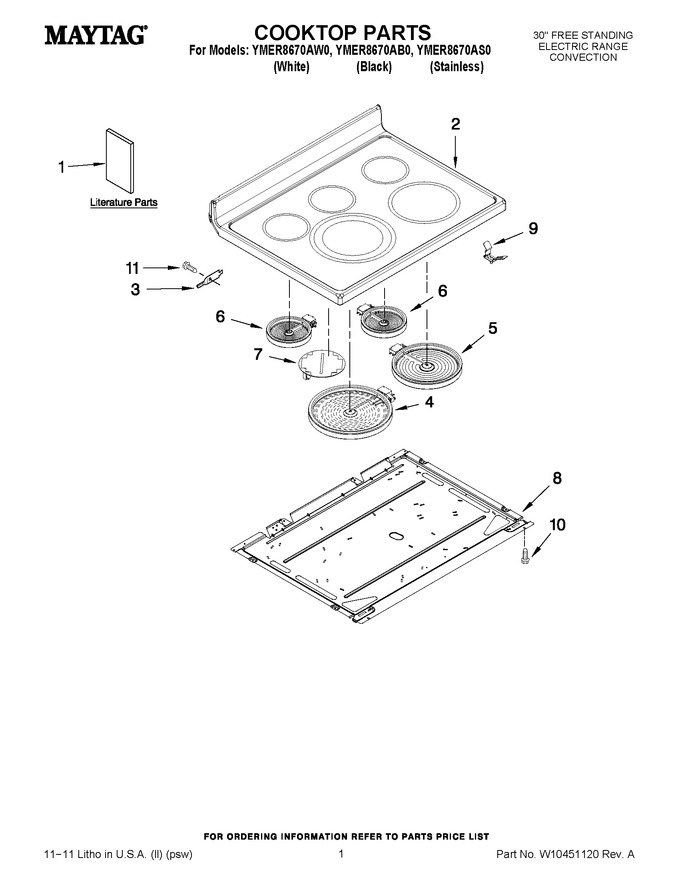

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10392922 | Use & Care Guide |
|
- | |||||
| 1 | W10384448 | Diagram, Wiring (english) |
|
- | |||||
| 1 | W10384463 | Diagram, Wiring (french) |
|
- | |||||
| 1 | W10400064 | Guide, Quick Start (english) |
|
- | |||||
| 1 | W10400065 | Guide, Quick Start (french) |
|
- | |||||
| 1 | W10403812 | Installation Instructions |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 2 | W10441392 | Cooktop (black) (Replaces: W10380669) |
|
- | |||||
| 2 | W10441389 | Cooktop (white) (Replaces: W10380668) |
|
$ 545.44 | |||||
| 3 | WP3195060 | Pin, Hinge (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 4 | WPW10189281 | Element (lf), 3000w Dual (Replaces: W10189281) |
|
Immediately | $ 377.54 | ||||
| 5 | W11047722 | Element (rf), 2500w (Replaces: 8273992) |
|
Immediately | $ 132.46 | ||||
| 6 | W11171119 | Element (lr/rr), 1200w (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 7 | W11047668 | Element (cr), Warm Zone (Replaces: W10388271) |
|
$ 132.95 | |||||
| 8 | W11728329 | Pan, Radiant (Replaces: W10106409) |
|
Immediately | $ 143.49 | ||||
| 9 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 10 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 11 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 |
