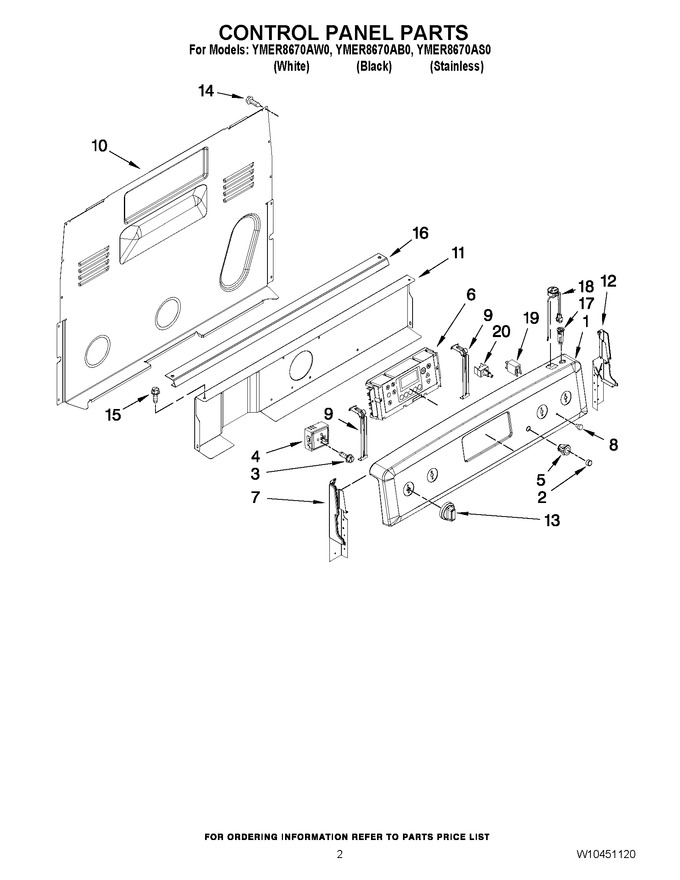

02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10333930 | Panel, Backguard (white) |
|
- | |||||
| 1 | W10333928 | Panel, Backguard (black) |
|
- | |||||
| 1 | W10333929 | Panel, Backguard (stainless Steel) |
|
- | |||||
| 2 | W10918209 | Button, Keep Warm (stainless) (Replaces: W10315961) |
|
$ 20.21 | |||||
| 2 | 9758491 | Button, Keep Warm (black) |
|
$ 19.74 | |||||
| 2 | 9757492 | Button, Keep Warm (white) |
|
$ 96.01 | |||||
| 3 | WP3400882 | Screw, Switch (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 4 | WPW10434452 | Switch, Infinte (lf) (Replaces: W10434452) |
|
Immediately | $ 140.84 | ||||
| 4 | 5500-287 | Switch, Infinte (lr & Rf & Rr) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 5 | W10217758 | Bezel, Keep Warm (black) |
|
$ 28.65 | |||||
| 5 | W10315960 | Bezel, Keep Warm (stainless) |
|
$ 63.42 | |||||
| 5 | W10217760 | Bezel, Keep Warm (white) |
|
$ 25.91 | |||||
| 6 | W10348714 | Control (lcc195) (white) |
|
- | |||||
| 6 | WPW10655837 | Control (lcc195) (stainless) (Replaces: W10348716) |
|
$ 501.11 | |||||
| 6 | W10348715 | Control (lcc195) (black) |
|
- | |||||
| 7 | W11219365 | End Cap, Left (white) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 7 | W11219664 | End Cap, Left (black) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 8 | WP3196068 | Lens, Red (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 9 | W11230932 | Bracket, Control (Replaces: W10324410) |
|
Immediately | $ 84.81 | ||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 12 | W11219665 | End Cap, Right (black) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 12 | W11219370 | End Cap, Right (white) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 13 | W10370184 | Knob (white) |
|
$ 83.65 | |||||
| 13 | WPW10370186 | Knob (stainless) (Replaces: W10370186) |
|
Immediately | $ 22.45 | ||||
| 13 | W10370185 | Knob (black) |
|
$ 22.80 | |||||
| 14 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 15 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 16 | W10525121 | Bracket (Replaces: W10182322) |
|
$ 98.85 | |||||
| 17 | WP9757602 | Breaker, Circuit (black) (Replaces: 9757602) |
|
Immediately | $ 53.81 | ||||
| 17 | WP9757601 | Breaker, Circuit (white) (Replaces: 9757601) |
|
Immediately | $ 65.55 | ||||
| 18 | W10861164 | Receptacle (black) (Replaces: W10203475) |
|
Immediately | $ 18.47 | ||||
| 18 | W10849725 | Receptacle (white) (Replaces: W10203476) |
|
Immediately | $ 80.79 | ||||
| 19 | WP8523265 | Light, Indicator (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 20 | WP8272820 | Switch, Warm Console Mounting (Replaces: 8272820) |
|
$ 178.91 |
