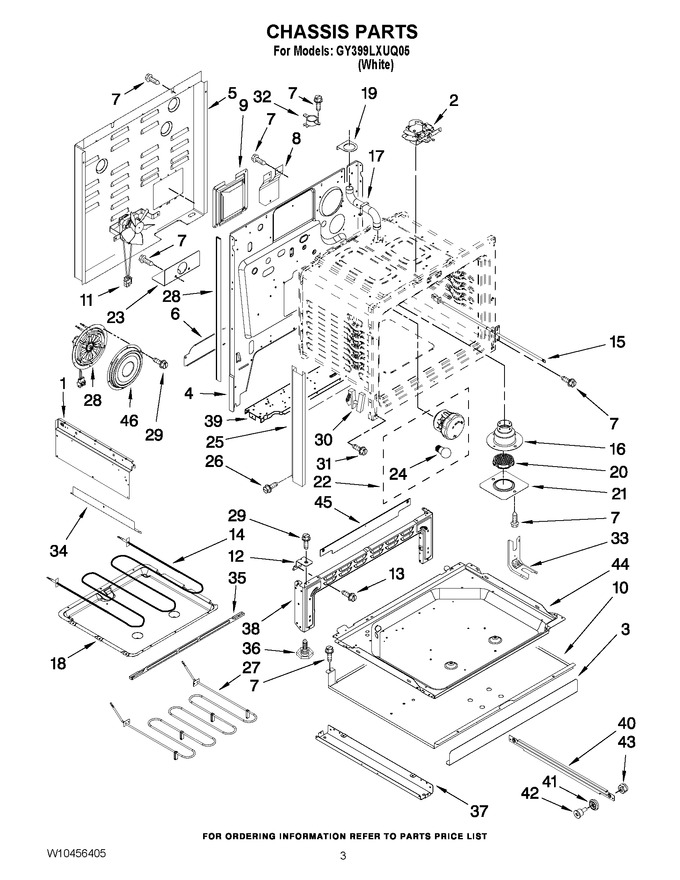

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2618F201-51		Panel, Shield (left)				$ 32.51
1	2618F206-51		Panel, Shield (right)				$ 135.68
2	WPW10274035		Latch/light Switch   (Replaces: W10274035)				$ 352.87
3	4005F749-45		Cover, Front				$ 7.43
4	3804F313-51		Main Back		Appelez-nous	-
5	4005F810-51		Cover, Main Wire				$ 248.98
6	3826F066-51		Extension, Back				$ 7.82
7	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
8	7003P101-60		Insulator, Cord				$ 15.60
9	3804F300-51		Retainer, Insul.				$ 69.39
10	3604F326-45		Shield, Warmer		Appelez-nous	-
11	WPW10586440		Fan, Cooling   (Replaces: W10317679)				$ 334.53
12	3807F727-45		Support,oven Btm				$ 18.96
13	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
14	WP7406P218-60		Element, Broil   (Replaces: W10314687)			Immediately	$ 177.66
15	12001656		Sensor, Oven   (Replaces: 7430P042-60)			Immediately	$ 50.14
16	8026P096-60		Tube, Vent Lower		Appelez-nous	-
17	8026P084-60		Tube, Vent Upper		Appelez-nous	-
18	3401F092-45		Pan, Hidden Bake				$ 97.82
19	3605F345-51		Holder, Vent Tube				$ 7.82
20	8034P008-60		Smoke, Eliminator				$ 25.43
21	3605F354-45		Plate, Smoke Elm.				$ 65.19
22	WP7407P182-60		Light Assembly   (Replaces: 7407P182-60)			Immediately	$ 73.44
23	W10190166		Bracket, Pwr Supply				$ 9.70
24	8009		Bulb-oven   (Replaces: 7407P103-60)			Immediately	$ 18.67
25	3608F138-71		Trim, Side (white)				$ 34.76
26	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
27	WP7406P411-60		Element, Bake   (Replaces: W10314699)			Immediately	$ 354.56
28	W10210594		Fan, Convection				$ 238.92
29	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
30	74011142		Hinge   (Replaces: 7106P141-60)			Immediately	$ 167.98
31	WP4159193		Screw, Hinge   (Replaces: 7101P282-60)				$ 5.07
32	WP7450P034-60		Switch, Hi-limit   (Replaces: 7450P034-60)				$ 228.46
33	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 6.11
34	3826F064-51		Extention, Shield		Appelez-nous	-
35	3807F494-45		Support, Element		Appelez-nous	-
36	7103P212-60		Leg, Leveling		Appelez-nous	-
37	4020W035-80		Pedestal, Bottom				$ 118.46
38	W10271711		Pedestal, Front				$ 144.40
39	3807F640-51		Support				$ 31.03
40	W10182835		Runner, Drawer				$ 75.89
41	W10272883		Roller, Drawer				$ 7.90
42	7118P032-60		Shaft, Roller		Appelez-nous	-
43	7103P190-60		Nut, Lock		Appelez-nous	-
44	3804F231-51		Retainer, Bottom				$ 147.45
45	7713P054-60		Trim, Front		Appelez-nous	-
46	WPW10346154		Cover, Conv Fan   (Replaces: 3605F323-19)			Immediately	$ 77.67
NI	7002P471-60		Insulation, Wrap		Appelez-nous	-
NI	7002P445-60		Insulation, Back		Appelez-nous	-
NI	7002P443-60		Insulation,				$ 41.31
NI	WP2205F060-19		Oven Bottom   (Replaces: 2205F060-19)				$ 340.20
NI	3804F289-51		Retainer, Wrap		Appelez-nous	-
NI	7002P448-60		Insulation, Bake Cover				$ 53.11
