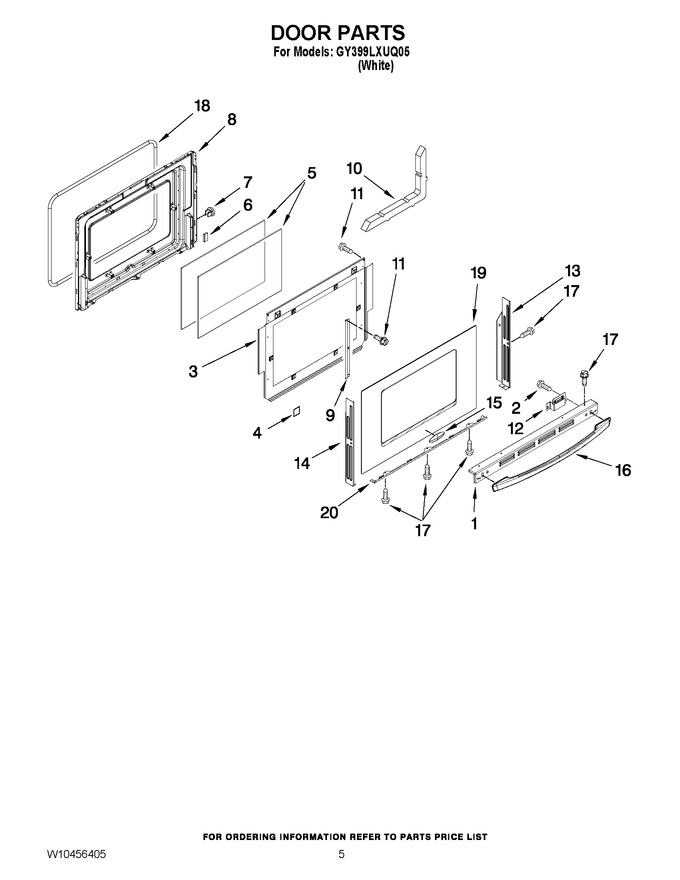

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3608F141-71 | Trim, Door Top (white) |
|
$ 98.12 | |||||
| 2 | W11396735 | Screw, Handle (Replaces: W10163951) |
|
$ 14.05 | |||||
| 3 | 3601F373-51 | Baffel, Retainer |
|
$ 271.36 | |||||
| 4 | 8010P152-60 | Spacer, Rubber |
|
- | |||||
| 5 | 74003645 | Glass, Inner (Replaces: 7902P436-60) |
|
Immediately | $ 180.59 | ||||
| 6 | WP74005546 | Spacer, Rubber (Replaces: 8010P130-60) |
|
$ 10.53 | |||||
| 7 | WP74001574 | Nut, Snap (Replaces: 7103P141-60) |
|
Immediately | $ 11.01 | ||||
| 8 | 2402W312-19 | Lining, Door |
|
$ 144.50 | |||||
| 9 | 3801F886-51 | Bracket, Glass |
|
$ 38.25 | |||||
| 10 | 7002P246-60 | Insulation, Door |
|
$ 58.49 | |||||
| 11 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.82 | ||||
| 12 | 3801F832-45 | Bracket, Handle (left) |
|
$ 21.24 | |||||
| 12 | 3801F831-45 | Bracket, Handle (right) |
|
$ 21.30 | |||||
| 13 | WP3608F116-71 | Trim, Right Door (white) (Replaces: 3608F116-71) |
|
$ 124.46 | |||||
| 14 | WP3608F117-71 | Trim, Left Door (white) (Replaces: 3608F117-71) |
|
$ 123.81 | |||||
| 15 | W10175320 | Badge |
|
$ 41.71 | |||||
| 16 | WPW10118430 | Handle, Door (white) (Replaces: W10118430) |
|
$ 265.99 | |||||
| 17 | 7101P208-60 | Screw, Trim (white) |
|
$ 11.92 | |||||
| 18 | WPW10162384 | Seal, Door (Replaces: W10162384) |
|
Immediately | $ 86.23 | ||||
| 19 | 7902P814-60 | Glass, Door (white) |
|
- | |||||
| 20 | WP3807F708-71 | Support, Lower Door (Replaces: 3807F708-71) |
|
$ 160.92 |
