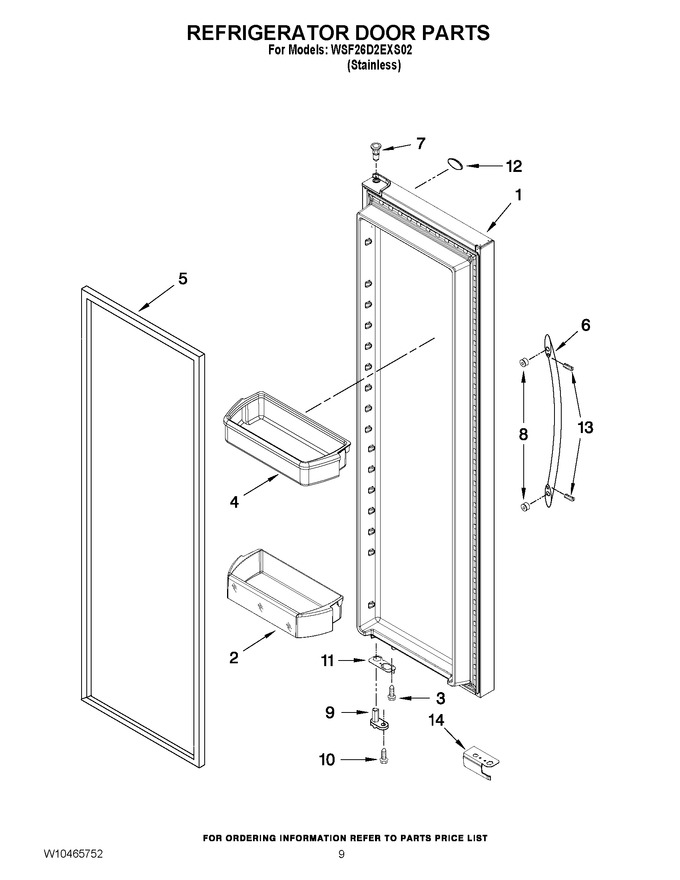

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10365617 | Refrigerator Door (includes Item 5) (stainless) (Replaces: W10365617) |
|
- | |||||
| 2 | WPW10321304 | Door Bin (Replaces: W10321304) |
|
Immediately | $ 44.73 | ||||
| 3 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 8.06 | |||||
| 4 | WPW10296855 | Door Bin, Shallow (Replaces: W10296855) |
|
$ 79.15 | |||||
| 5 | WPW10249912 | Door Gasket, Magnetic (Replaces: W10249912) |
|
$ 329.18 | |||||
| 6 | WPW10670421 | Handle (Replaces: W10274730) |
|
$ 254.15 | |||||
| 7 | WP2182181 | Thimble-top (Replaces: 2200087) |
|
$ 8.15 | |||||
| 8 | WPW10170540 | Stud, Handle (Replaces: W10170540) |
|
Immediately | $ 8.51 | ||||
| 9 | WPW10257201 | Door Closer, Upper Cam (Replaces: W10257201) |
|
$ 12.93 | |||||
| 10 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 11.39 | |||||
| 11 | W11037957 | Bracket, Door Stop (Replaces: W10247909) |
|
$ 80.24 | |||||
| 12 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 93.18 | ||||
| 13 | W11366418 | Set Screw (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 14 | W10257216 | Cover, Door Stop |
|
- |
