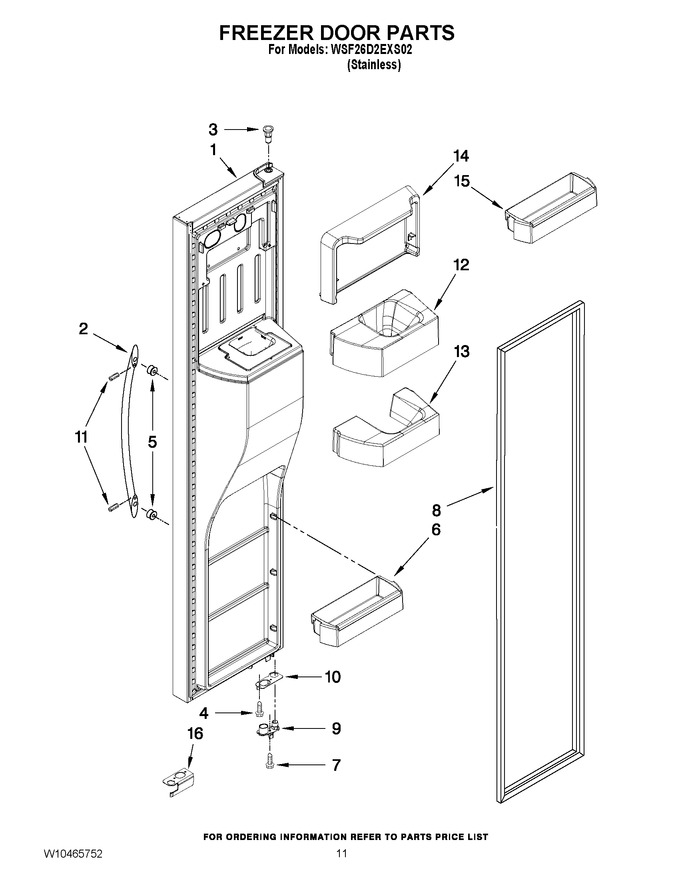

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10365671		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless)   (Replaces: W10365671)		Appelez-nous	-
2	WPW10670421		Handle   (Replaces: W10274730)				$ 254.15
3	WP2182181		Thimble-top   (Replaces: 2200087)				$ 8.15
4	WPW10296804		Screw   (Replaces: W10296804)				$ 11.39
5	WPW10170540		Stud, Handle   (Replaces: W10170540)			Immediately	$ 8.51
6	WPW10296857		Door Bin   (Replaces: W10296857)				$ 81.31
7	WPW10296816		Screw   (Replaces: W10296816)				$ 8.06
8	WPW10249913		Door Gasket, Magnetic   (Replaces: W10249913)				$ 321.05
9	W11607100		Door Closer, Upper Cam   (Replaces: W10257204)			Immediately	$ 13.98
10	W11293380		Bracket, Door Stop   (Replaces: W10247907)				$ 69.21
11	W11366418		Set Screw   (Replaces: W10010140)			Immediately	$ 15.79
12	W10284556		Chute Adapter		Appelez-nous	-
13	W10283476		Filler, Chute		Appelez-nous	-
14	W10314925		Half Bin Housing		Appelez-nous	-
15	W10316652		Bin, Upper				$ 98.04
16	W10632060		Cover, Door Stop   (Replaces: W10257221)				$ 22.30
