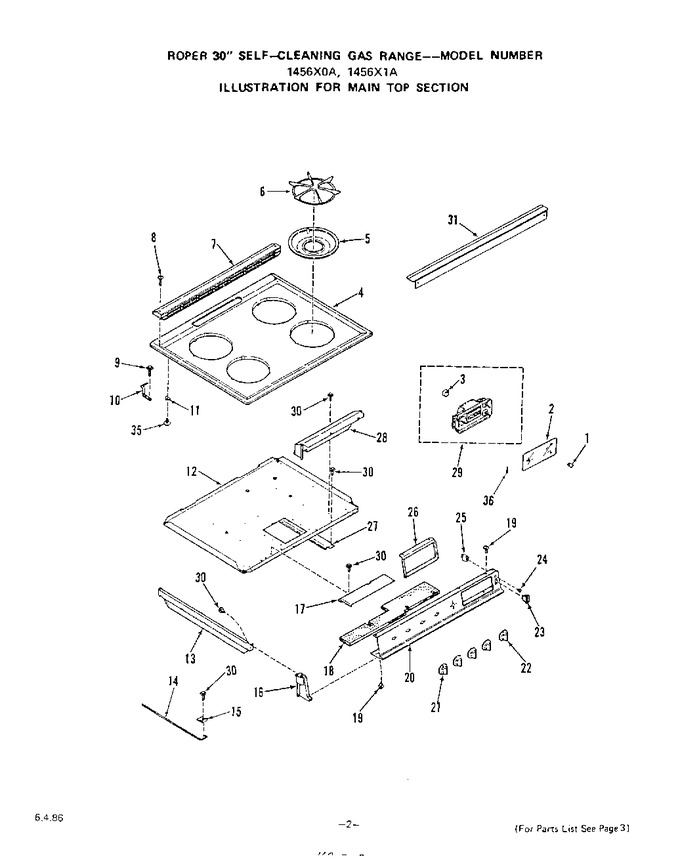

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	294810		Knob-clock (minute Minder)		Appelez-nous	-
1	109225		Knob-clock (start & Stop Time)		Appelez-nous	-
2	330403		Glass-clock		Appelez-nous	-
3	327309		Motor-clock		Appelez-nous	-
4	330378		Main Top (1456x0a Models)		Appelez-nous	-
4	334858		Main Top (1456x1a Models)		Appelez-nous	-
5	330427		Aeration Pan (4 Req)		Appelez-nous	-
6	316786		Top Grate (4 Req)		Appelez-nous	-
7	330738		Cover-vent		Appelez-nous	-
8	332285		Screw 6-32		Appelez-nous	-
9	78565		Screw 8-32x3/16``		Appelez-nous	-
10	334844		Hinge-main Top (left 1456x1a Models)		Appelez-nous	-
10	331514		Hinge-main Top (left 1456x0a Models)		Appelez-nous	-
10	334843		Hinge-main Top (right 1456x1a Models)		Appelez-nous	-
10	331513		Hinge-main Top (right 1456x0a Models)		Appelez-nous	-
11	335161		Bracket-hinge		Appelez-nous	-
12	330368		Burner Box Bottom		Appelez-nous	-
13	334877		Extension-burner Box Side (1456x1a Models)		Appelez-nous	-
13	330343		Extension-burner Box Side (1456x0a Models)		Appelez-nous	-
14	326066		Rod-main Top		Appelez-nous	-
15	326348		Clamp		Appelez-nous	-
16	330345		End Cap-manifold Panel (right)		Appelez-nous	-
16	330344		End Cap-manifold Panel (left)		Appelez-nous	-
17	331123		Cover-insulation		Appelez-nous	-
18	331092		Insulation		Appelez-nous	-
19	316849		Screw-10-32x1/2``		Appelez-nous	-
20	331382		Manifold Panel		Appelez-nous	-
21	327485		Knob-gas Valve (4 Req)		Appelez-nous	-
22	328806		Knob-thermostat		Appelez-nous	-
23	334649		Switch-oven Light (1456x1a Models)		Appelez-nous	-
23	334564		Switch-oven Light (1456x0a Models)		Appelez-nous	-
24	331705		Lens-indicator Light		Appelez-nous	-
25	331716		Light-indicator		Appelez-nous	-
26	330337		Bracket-clock		Appelez-nous	-
27	330558		Stiffener-burner Box Bottom		Appelez-nous	-
28	330356		Cover-wire		Appelez-nous	-
29	330401		Clock		Appelez-nous	-
30	327320		Screw 10-16x7/16``		Appelez-nous	-
31	331228		Filler-main Top Rear		Appelez-nous	-
35	286628		Screw 10-32x5/16`` 1456x1a Models		Appelez-nous	-
36	335073		Clip-clock Bezel 1456x1a Models		Appelez-nous	-
