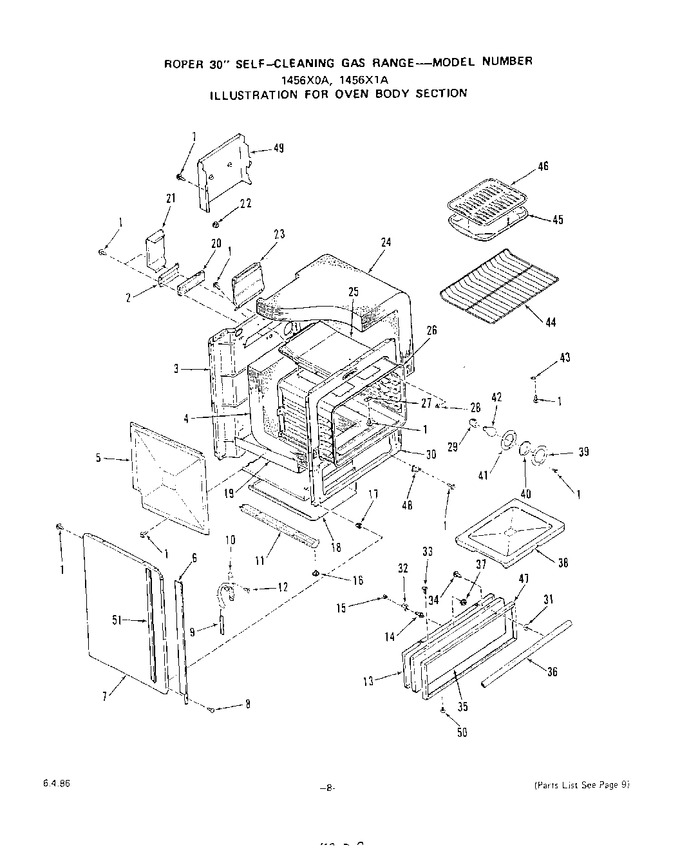

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327320		Screw 10-16x7/16``		Appelez-nous	-
2	327809		Wire Shield		Appelez-nous	-
3	330613		Main Back		Appelez-nous	-
4	329146		Insulation-oven Back & Bottom (1 Piece)		Appelez-nous	-
5	328959		Retainer-insulation (lt. Or Rt.)		Appelez-nous	-
6	330340		Trim-side (left)		Appelez-nous	-
6	330341		Trim-side (right)		Appelez-nous	-
7	326102		Body Side (lt. Or Rt.) (black)		Appelez-nous	-
8	326974		Screw 10ab		Appelez-nous	-
9	326965		Spring-oven Door (lt. Or Rt.)		Appelez-nous	-
10	326013		Hinge-oven Door (left)		Appelez-nous	-
10	326012		Hinge-oven Door (right)		Appelez-nous	-
11	326050		Base W/levelers (lt. Or Rt.)		Appelez-nous	-
12	112013		Screw 10-32 X 5/8``		Appelez-nous	-
13	330668		Lining-storage Door		Appelez-nous	-
14	299784		Strike		Appelez-nous	-
15	71003		Catch-strike		Appelez-nous	-
16	326052		Leg Leveler (4 Req)		Appelez-nous	-
17	330031		Expansion Nut Spacer (4 Req)   (Replaces: 312605)			Immediately	$ 19.92
18	328491		Storage Compartment		Appelez-nous	-
19	331144		Lower Insulation Retainer		Appelez-nous	-
20	330166		Insulation		Appelez-nous	-
21	327808		Wire Shield		Appelez-nous	-
22	324257		Bushing		Appelez-nous	-
23	330978		Flue Deflector		Appelez-nous	-
24	329147		Insulation-oven Top & Sides (1 Piece)		Appelez-nous	-
25	327781		Flue Box		Appelez-nous	-
26	331568		Oven Body		Appelez-nous	-
27	304835		Cover		Appelez-nous	-
28	321539		Clip-thermostat Bulb (2 Rew)		Appelez-nous	-
29	87883		Holder-oven Light Bulb		Appelez-nous	-
30	332680		Front Frame		Appelez-nous	-
31	302343		Spacer-handle		Appelez-nous	-
32	328429		Bracket-catch		Appelez-nous	-
33	316849		Screw-10-32x1/2``		Appelez-nous	-
34	327320		Screw 10-16x7/16``		Appelez-nous	-
35	326292		Front Panel-storage Door		Appelez-nous	-
36	292240		Handle-storage Door		Appelez-nous	-
37	239764		Keps Nut 8-32		Appelez-nous	-
38	331563		Oven Bottom		Appelez-nous	-
39	229372		Retainer-oven Light Lens		Appelez-nous	-
40	114989		Lens-oven Light		Appelez-nous	-
41	229371		Gasket-lens		Appelez-nous	-
42	DA96-01243C		Oven Light Bulb   (Replaces: 111257)				$ 160.00
43	237762		Cover Plate-thermostat Bulb		Appelez-nous	-
44	326069		Oven Rack (2 Req)		Appelez-nous	-
45	331592		Broiler Pan		Appelez-nous	-
46	326297		Broiler Pan Grid		Appelez-nous	-
47	330120		Frame-front Panel		Appelez-nous	-
48	107969		Hinge		Appelez-nous	-
49	330338		Shield-flue Deflector		Appelez-nous	-
50	327621		Screw 6-20x3/8``		Appelez-nous	-
51	331512		Extension Side Trim		Appelez-nous	-
