Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10206315 Lining, Door Appelez-nous -
2 W11132120 Glass, Inner   (Replaces: W10272707) Special Order $ 170.79

3 WPW10272708 Frame, Glass   (Replaces: W10272708) Special Order $ 163.74

4 WPW10292297 Screw   (Replaces: W10292297) In-Stock Immediately $ 7.19

5 W10340589 Retainer, Insulation Special Order $ 105.40

6 WPW10321271 Insulation, Door   (Replaces: W10321271) Special Order $ 94.46

7 W10647259 Receiver, Hinge   (Replaces: W10289077) In-Stock Immediately $ 9.32

8 W10273126 Assembly, Glass Door (stainless) Appelez-nous -
8 W10322718 Assembly, Glass Door (white) Appelez-nous -
8 W10322720 Assembly, Glass Door (black) Appelez-nous -
9 WPW10294695 Bracket, Handle   (Replaces: W10294695) Special Order $ 140.02

10 WPW10317886 Screw   (Replaces: W10317886) In-Stock Immediately $ 7.76

11 WPW10161708 Handle, Door (stainless)   (Replaces: W10161708) Special Order $ 355.25

11 W10323581 Handle, Door (white) Special Order $ 178.21

11 W10323584 Handle, Door (black) Special Order $ 175.78

12 W10274501 Hinge, Door (right) Special Order $ 38.26

12 W10274503 Hinge, Door (left) Special Order $ 37.18

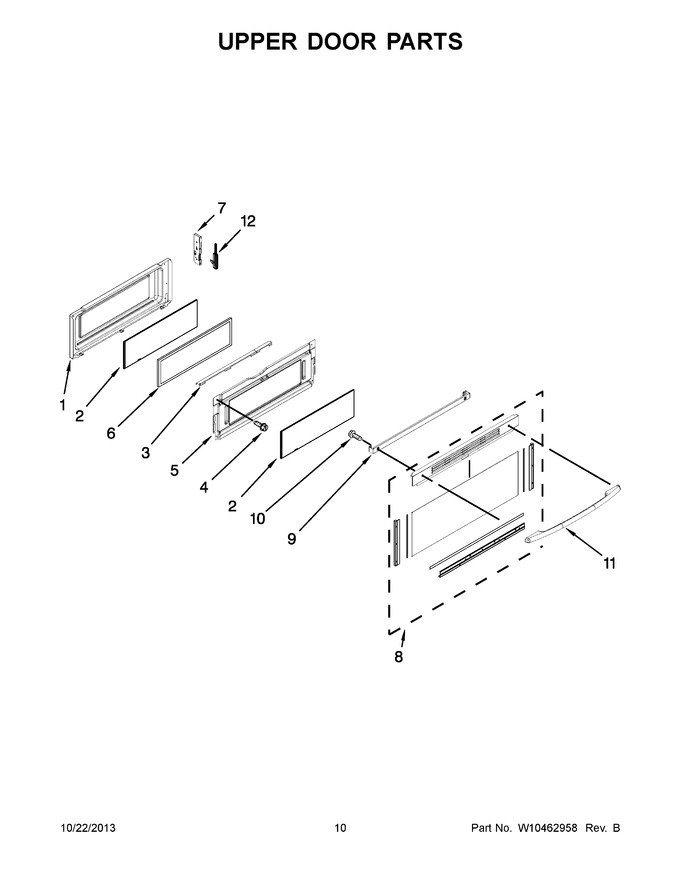

    View Diagram in Separate Window     Print Icon   Print Part List
