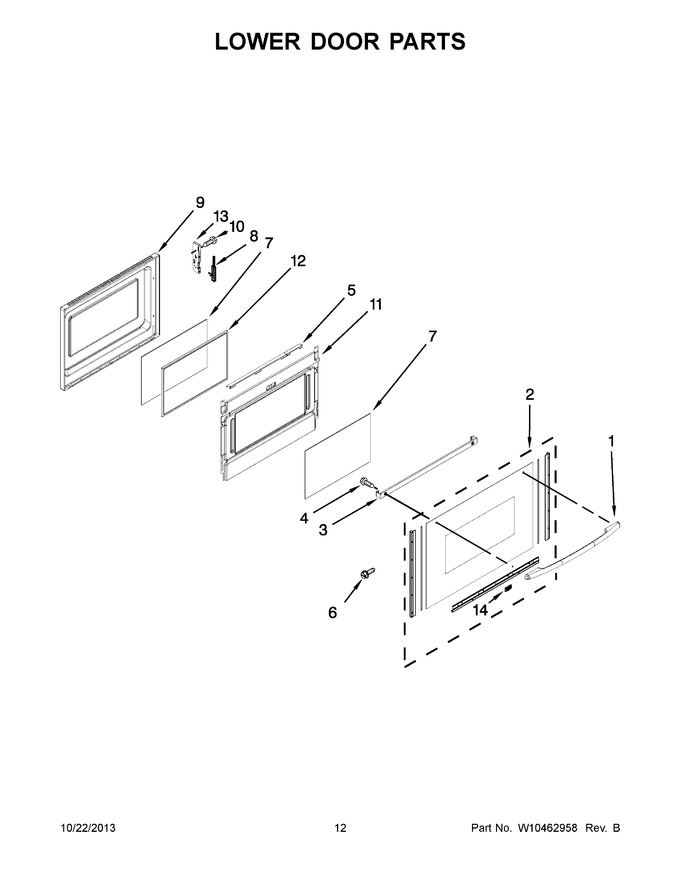

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10323581 | Handle, Door (white) |
|
$ 178.21 | |||||
| 1 | WPW10161708 | Handle, Door (stainless) (Replaces: W10161708) |
|
$ 355.25 | |||||
| 1 | W10323584 | Handle, Door (black) |
|
$ 175.78 | |||||
| 2 | W10324547 | Assembly, Glass Door (black) |
|
- | |||||
| 2 | W10324124 | Assembly, Glass Door (white) |
|
- | |||||
| 2 | W10272573 | Assembly, Glass Door (stainless) |
|
- | |||||
| 3 | WPW10294695 | Bracket, Handle (Replaces: W10294695) |
|
$ 140.02 | |||||
| 4 | 7109P084-60 | Washer, Fiber |
|
- | |||||
| 5 | WPW10272594 | Frame, Glass (Replaces: W10272594) |
|
Immediately | $ 187.99 | ||||
| 6 | WPW10292297 | Screw (Replaces: W10292297) |
|
Immediately | $ 7.19 | ||||
| 7 | WP9757706 | Glass, Inner (Replaces: 9757706) |
|
Immediately | $ 141.95 | ||||
| 8 | WPW10335433 | Hinge, Door (right) (Replaces: W10335433) |
|
$ 99.99 | |||||
| 8 | WPW10335434 | Hinge, Door (left) (Replaces: W10335434) |
|
Immediately | $ 98.00 | ||||
| 9 | WPW10272698 | Lining, Door (Replaces: W10272698) |
|
$ 329.26 | |||||
| 10 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 11 | W10340464 | Retainer, Insulation |
|
$ 276.00 | |||||
| 12 | WPW10321285 | Insulation, Door (Replaces: W10321285) |
|
$ 101.36 | |||||
| 13 | WPW10272329 | Receiver (left) (Replaces: W10272329) |
|
$ 77.25 | |||||
| 13 | WPW10272328 | Receiver (right) (Replaces: W10272328) |
|
$ 85.75 | |||||
| 14 | W10288004 | Nameplate |
|
$ 49.63 |
