SELECT A DIAGRAM
01 - Top And Cabinet Parts
02 - Door Parts

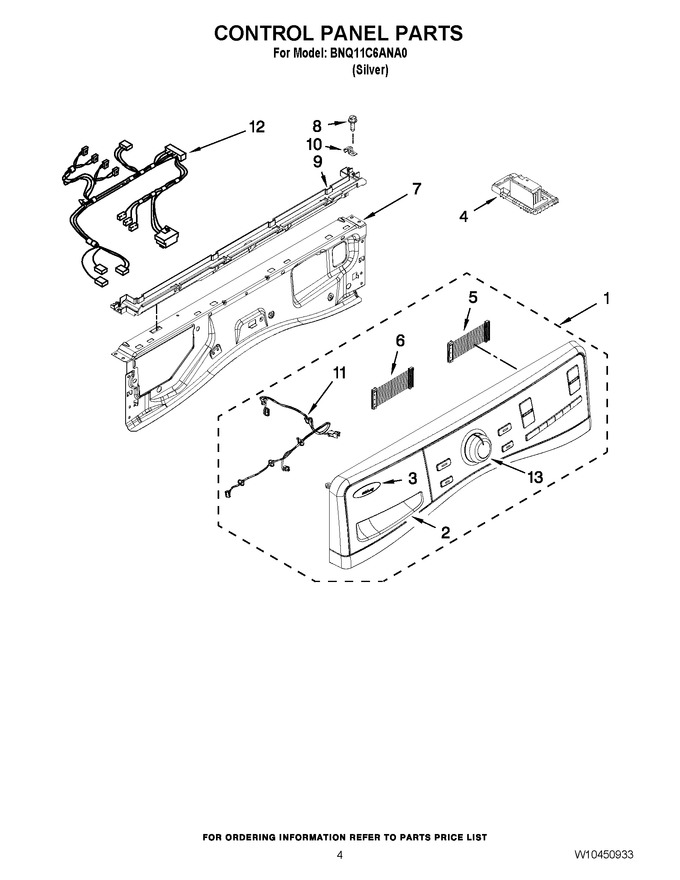

03 - Control Panel Parts
04 - Dispenser Parts
05 - Tub And Basket Parts
06 - Pump Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10429155 | Console Asssembly |
|
- | |||||
| 2 | W10411193 | Handle, Dispenser Drawer (also Shown On Page 5) (includes Item 3) |
|
- | |||||
| 3 | W10411195 | Badge |
|
- | |||||
| 4 | W10435468 | Control Unit, Central |
|
- | |||||
| 5 | W10267937 | Harness, Jumper |
|
- | |||||
| 6 | W10267938 | Harness, Ui Jumper |
|
- | |||||
| 7 | W10208197 | Bracket, Console |
|
$ 174.54 | |||||
| 8 | WP489464 | Screw, 8-18 X 1/2 (Replaces: W10142290) |
|
Immediately | $ 8.38 | ||||
| 9 | WPW10653575 | Channel, Water (includes Item 10) (Replaces: W10317570) |
|
$ 90.94 | |||||
| 10 | W10317566 | Clip, Spring |
|
$ 9.16 | |||||
| 11 | W10271989 | Harness, Main Ui |
|
$ 250.95 | |||||
| 12 | W10432027 | Harness, Wiring (upper Main) |
|
- | |||||
| 13 | WPW10251394 | Knob (Replaces: W10251394) |
|
$ 55.94 |
