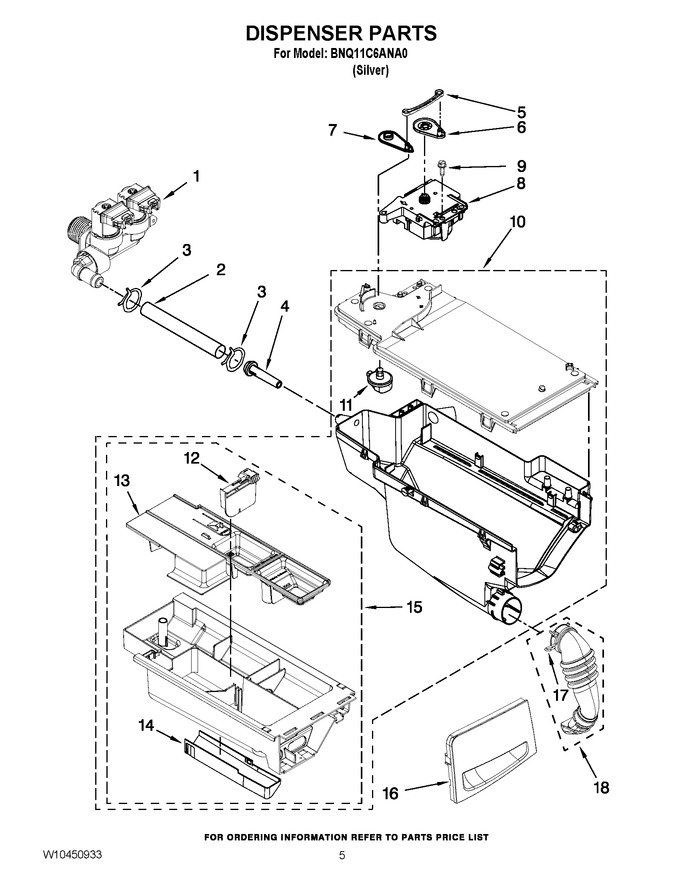

04 - Dispenser Parts
05 - Tub And Basket Parts
06 - Pump Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10289387 | Valve, Inlet (Replaces: W10289387) |
|
Immediately | $ 131.05 | ||||
| 2 | W10538835 | Hose, Inlet Valve To Dispenser (Replaces: W10239952) |
|
$ 29.06 | |||||
| 3 | WP596669 | Clamp, Hose (Replaces: 370450) |
|
Immediately | $ 8.40 | ||||
| 4 | WP8183181 | Nozzle, Inlet (Replaces: 8183181) |
|
$ 90.30 | |||||
| 5 | WP8183183 | Lever, Connection (Replaces: 8183183) |
|
$ 90.23 | |||||
| 6 | WP8183184 | Cam, Actuator (Replaces: W10003190) |
|
$ 90.23 | |||||
| 7 | W10183517 | Lever, Water Distribution |
|
$ 9.94 | |||||
| 8 | WPW10352973 | Actuator (Replaces: W10163975) |
|
Immediately | $ 134.69 | ||||
| 9 | WP8540282 | Screw, M4-1.8 X 16 (Replaces: 8540282) |
|
$ 11.56 | |||||
| 10 | W10433522 | Housing, Dispenser Assembly (includes Item 7) |
|
- | |||||
| 11 | WP8181712 | Nozzle, Distribution (Replaces: W10003110) |
|
$ 89.11 | |||||
| 12 | W10433529 | Separator, With Selection Slider |
|
- | |||||
| 13 | W10433526 | Siphon, Bleach/softener |
|
- | |||||
| 14 | W10003140 | Cover, Detergent Drawer |
|
$ 85.63 | |||||
| 15 | W10433523 | Drawer, Detergent (complete) |
|
- | |||||
| 16 | W10411193 | Handle, Drawer |
|
- | |||||
| 17 | W10239910 | Clamp, Hose |
|
Immediately | $ 59.43 | ||||
| 18 | WPW10239966 | Hose, Dispenser To Bellow (Replaces: W10239966) |
|
$ 82.95 |
