01 - Cover Sheet

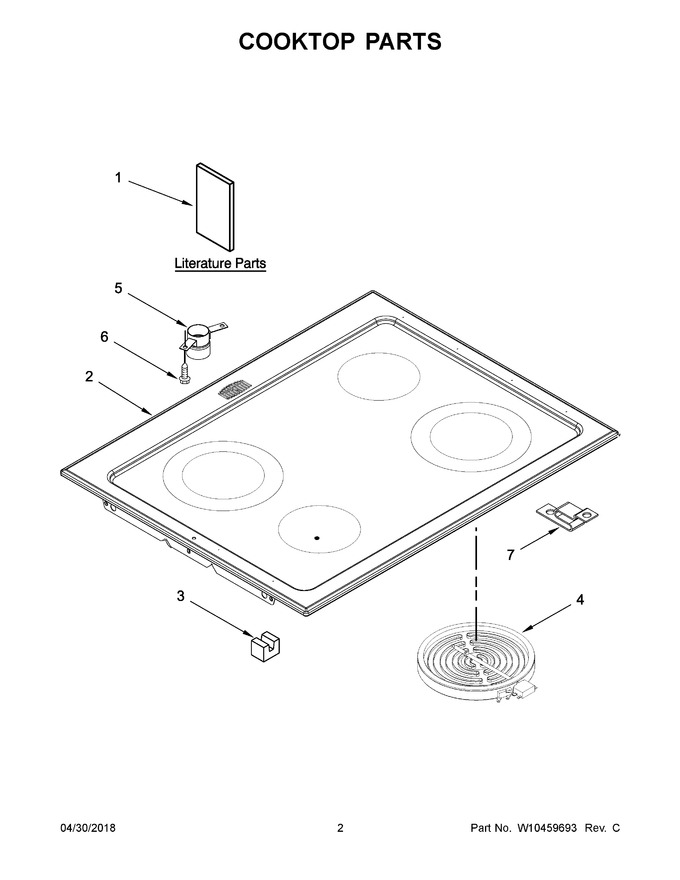

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10430922 | Guide, Use & Care |
|
- | |||||
| 2 | W10170210 | Cooktop (black) |
|
$ 823.20 | |||||
| 3 | 8255P412-60 | Block, Element Support |
|
$ 31.52 | |||||
| 4 | W11171119 | Element (1200w) (left Front & Right Rear) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 5 | W10233479 | Tube, Vent Upper |
|
$ 74.82 | |||||
| 6 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 7 | 8004P093-60 | Support, Element |
|
$ 10.61 | |||||
| 1A | 8101P336-60 | Installation Instructions |
|
- | |||||
| 2A | W10170209 | Cooktop (white) (Replaces: W10204449) |
|
$ 985.92 | |||||
| 4A | WPW10275049 | Element (2500/1200w) (left Rear & Right Front) (Replaces: W10275049) |
|
Immediately | $ 314.23 | ||||
| NI | 5111P297-60 | Wire,14-green 200c |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | 5171P540-60 | Harness, Sensor |
|
- | |||||
| NI | W10298902 | Harness, Top |
|
$ 121.71 | |||||
| NI | 5700P822-60 | Cable Assembly, Flex |
|
- | |||||
| NI | 5171P550-60 | Harness, Switch (right) |
|
$ 86.86 | |||||
| NI | 5171P557-60 | Harness, Switch (left) |
|
$ 28.69 | |||||
| NI | W10435262 | Harness, Main |
|
- | |||||
| NI | 8019P013-60 | Clip, Wire Lock |
|
$ 15.70 | |||||
| NI | 8008P055-60 | Grommet |
|
- |
