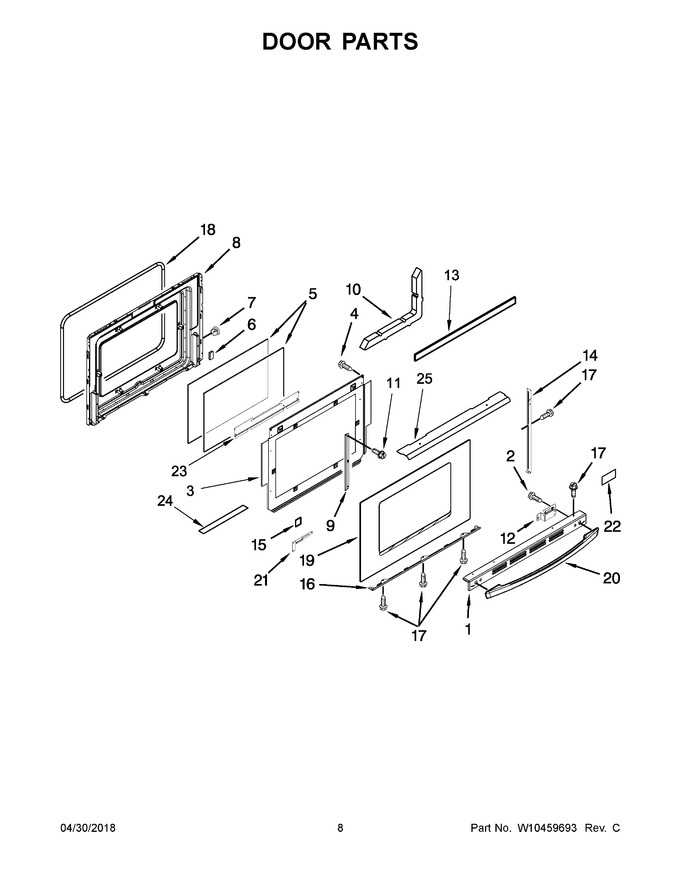

05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3608F141-70 | Trim, Door Top (black) |
|
$ 96.37 | |||||
| 2 | 7101P208-60 | Screw |
|
$ 11.92 | |||||
| 3 | 3601F373-51 | Baffle, Oven Door Window |
|
$ 271.36 | |||||
| 4 | W11347848 | Screw (Replaces: 7101P376-60) |
|
$ 13.55 | |||||
| 5 | 74003645 | Glass, Inner (coated) (Replaces: 7902P436-60) |
|
Immediately | $ 180.59 | ||||
| 6 | WP74005546 | Spacer, Rubber (Replaces: 8010P130-60) |
|
$ 10.53 | |||||
| 7 | WP74001574 | Nut, Snap (black) (Replaces: 7103P141-60) |
|
Immediately | $ 11.01 | ||||
| 8 | 2402W312-19 | Lining, Door |
|
$ 144.50 | |||||
| 9 | 3801F886-51 | Bracket, Glass |
|
$ 38.25 | |||||
| 10 | 7002P246-60 | Insulation, Oven Door |
|
$ 58.49 | |||||
| 11 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.82 | ||||
| 12 | 3801F832-45 | Bracket, Handle (left) |
|
$ 21.24 | |||||
| 13 | WP74010043 | Insulation, Door (Replaces: 7002P427-60) |
|
$ 74.64 | |||||
| 14 | 3608F117-70 | Trim, Door Side (black (left Hand)) |
|
$ 49.73 | |||||
| 15 | 8010P152-60 | Spacer, Rubber |
|
- | |||||
| 16 | 3807F708-70 | Support, Glass |
|
$ 63.97 | |||||
| 17 | WP98008545 | Screw (black) (Replaces: 7101P633-60) |
|
$ 17.71 | |||||
| 18 | WPW10162384 | Gasket, Door (Replaces: W10162384) |
|
Immediately | $ 86.23 | ||||
| 19 | 7902P815-60 | Assembly, Outer Door (black) |
|
- | |||||
| 20 | W10118431 | Handle, Door (black) |
|
$ 210.24 | |||||
| 21 | 3804F308-51 | Retainer, Glass (left) |
|
- | |||||
| 22 | W11178521 | Badge (grey) (Replaces: W10481433) |
|
Immediately | $ 63.13 | ||||
| 23 | 3804F317-80 | Retainer, Glass |
|
$ 65.61 | |||||
| 24 | 74011048 | Insulation, Foil (stainless) (Replaces: 7002P463-60) |
|
$ 79.70 | |||||
| 25 | 3604F418-51 | Shield, Door |
|
$ 77.46 | |||||
| 12A | 3801F831-45 | Bracket, Handle (right) |
|
$ 21.30 | |||||
| 14A | 3608F116-70 | Trim, Door Side (black (right Hand)) |
|
$ 49.75 | |||||
| 14B | WP3608F117-71 | Trim, Door Side (white (left Hand)) (Replaces: 3608F117-71) |
|
$ 123.81 | |||||
| 14C | WP3608F116-71 | Trim, Door Side (white (right Hand)) (Replaces: 3608F116-71) |
|
$ 124.46 | |||||
| 19A | 7902P814-60 | Assembly, Outer Door (white) |
|
- | |||||
| 19B | W10494716 | Assembly, Outer Door (stainless) |
|
- | |||||
| 1A | 3608F141-71 | Trim, Door Top (white) |
|
$ 98.12 | |||||
| 20A | WPW10118430 | Handle, Door (white) (Replaces: W10118430) |
|
$ 265.99 | |||||
| 20B | WPW10144883 | Handle, Door (stainless) (Replaces: W10144883) |
|
$ 240.63 | |||||
| 21A | 3804F307-51 | Retainer, Glass (right) |
|
$ 109.75 | |||||
| 5A | 7902P468-60 | Glass, Inner (clear) |
|
- |
