01 - Cooktop Parts

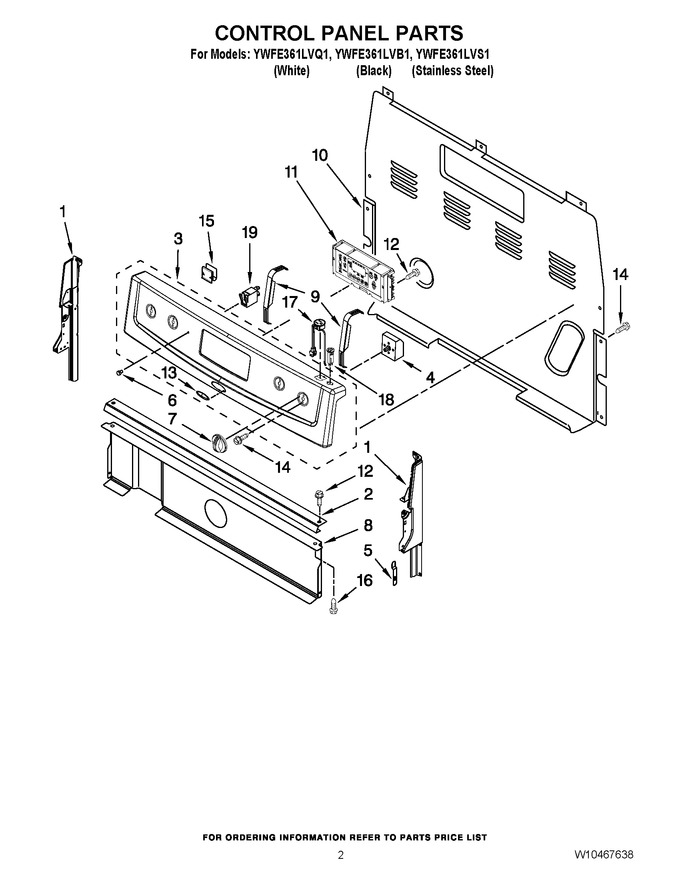

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white Left Hand) (Replaces: W10184433) |
|
$ 40.43 | |||||
| 1 | W11219370 | Endcap (white Right Hand) (Replaces: W10184434) |
|
$ 57.93 | |||||
| 1 | W11219664 | Endcap (black Left Hand) (Replaces: W10184437) |
|
$ 146.50 | |||||
| 1 | W11219665 | Endcap (black Right Hand) (Replaces: W10184438) |
|
$ 40.44 | |||||
| 2 | W10525121 | Bracket, Console (Replaces: W10182322) |
|
$ 94.14 | |||||
| 3 | W10170644 | Panel, Control (stainless Steel) |
|
$ 93.23 | |||||
| 3 | W10184056 | Panel, Control (white) |
|
$ 67.78 | |||||
| 3 | W10184059 | Panel, Control (black) |
|
$ 50.66 | |||||
| 4 | WP3149400 | Switch, Infinite (right Front) (Replaces: 3148954) |
|
Immediately | $ 90.51 | ||||
| 4 | 5500-287 | Switch, Infinite (right Rear) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 4 | WPW10434452 | Switch, Infinite (left Front (dual)) (Replaces: W10434452) |
|
Immediately | $ 140.84 | ||||
| 5 | 3196200 | Clip, Spring |
|
$ 9.95 | |||||
| 6 | WP3196068 | Lens, Light (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | WP9761964 | Knob, Infinite (black) (Replaces: 9761964) |
|
Immediately | $ 21.24 | ||||
| 7 | WP9761962 | Knob, Infinite (white) (Replaces: 9761962) |
|
Immediately | $ 19.67 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 341.73 | ||||
| 9 | 9762078 | Brkt-mntg, Eoc |
|
$ 38.13 | |||||
| 10 | WP8272473 | Cover, Rear (Replaces: 8272473) |
|
$ 208.61 | |||||
| 11 | WPW10476687 | Control, Range (white) (Replaces: W10271749) |
|
$ 441.30 | |||||
| 11 | W10876180 | Control, Range (black) (Replaces: W10271750) |
|
$ 418.92 | |||||
| 12 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.02 | ||||
| 13 | W10209617 | Nameplate |
|
$ 35.30 | |||||
| 14 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.19 | ||||
| 15 | WP8273564 | Clip - Cover (Replaces: 8273564) |
|
$ 12.06 | |||||
| 16 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.19 | ||||
| 17 | W10849725 | Receptacle (white) (Replaces: W10203476) |
|
Immediately | $ 80.79 | ||||
| 17 | W10861164 | Receptacle (black) (Replaces: W10203475) |
|
Immediately | $ 18.47 | ||||
| 18 | WP9757602 | Breaker (black) (Replaces: 9757602) |
|
Immediately | $ 53.81 | ||||
| 18 | WP9757601 | Breaker (white) (Replaces: 9757601) |
|
Immediately | $ 65.55 | ||||
| 19 | W10349712 | Indicator Light |
|
$ 280.41 |
