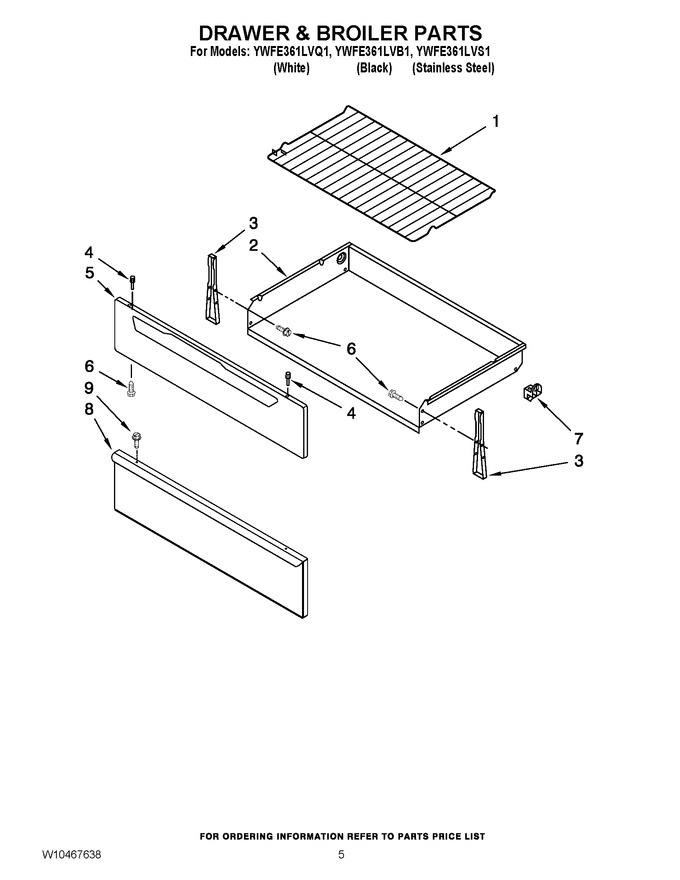

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (Replaces: W10268578) |
|
Immediately | $ 46.84 | ||||
| 2 | W10296838 | Drawer, Storage |
|
- | |||||
| 3 | WPW10462912 | Brkt-mntg, Drawer (white & Black) (Replaces: W10174396) |
|
Immediately | $ 127.39 | ||||
| 3 | W10838990 | Brkt-mntg, Drawer (stainless) (Replaces: 9758200) |
|
Immediately | $ 84.71 | ||||
| 4 | WP3196814 | Rivet, Push (white) (Replaces: 3196814) |
|
Immediately | $ 10.54 | ||||
| 4 | WP3196813 | Rivet, Push (black) (Replaces: 3196813) |
|
Immediately | $ 10.67 | ||||
| 5 | W11219377 | Panel, Drawer Frnt (white) (Replaces: 8053339) |
|
$ 202.45 | |||||
| 5 | W11230488 | Panel, Drawer Frnt (black) (Replaces: 8053341) |
|
$ 202.32 | |||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 7 | WP8053334 | Glide, Drawer (Replaces: 8053334) |
|
Immediately | $ 7.84 | ||||
| 8 | W10237657 | Panel(stls.model) |
|
$ 116.43 | |||||
| 9 | W11233072 | Screw (Replaces: 7101P634-60) |
|
Immediately | $ 14.02 |
