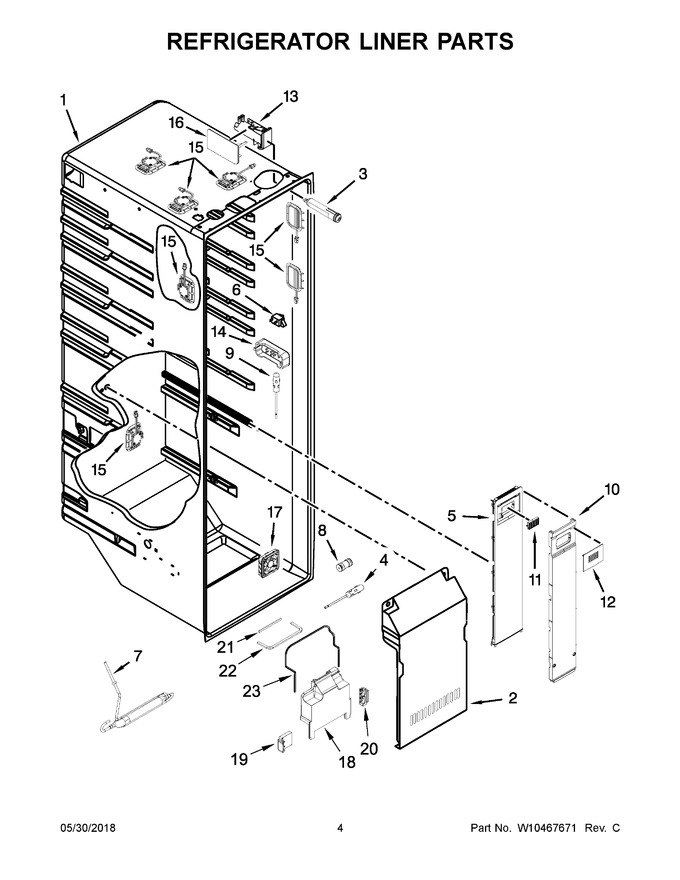

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WPW10387382 | Cover, Evaporator (Replaces: W10387382) |
|
$ 245.04 | |||||
| 3 | EDR1RXD1B | Filter, Water (Replaces: W10295370) |
|
Immediately | $ 49.99 | ||||
| 4 | W10316760 | Thermistor, Evaporator Fan (Replaces: W10323459) |
|
Immediately | $ 72.91 | ||||
| 5 | W10341548 | Cover, Air Filter |
|
$ 80.75 | |||||
| 6 | W11384469 | Switch, Light (Replaces: W10656773) |
|
Immediately | $ 39.09 | ||||
| 7 | W11204869 | Reservoir (Replaces: W10538994) |
|
$ 167.67 | |||||
| 8 | WP2300868 | Connector, Union (Replaces: W10271541) |
|
Immediately | $ 29.05 | ||||
| 9 | W11724692 | Thermistor (Replaces: W10280385) |
|
Immediately | $ 33.60 | ||||
| 10 | W10513730 | Cover, Air Tower |
|
$ 110.44 | |||||
| 11 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 14.34 | ||||
| 12 | W10341548 | Cover, Air Filter |
|
$ 80.75 | |||||
| 13 | WPW10341545 | Housing, Water Filter (Replaces: W10341545) |
|
Immediately | $ 221.37 | ||||
| 14 | WPW10425252 | Cover, Thermistor (Replaces: W10425252) |
|
Immediately | $ 88.38 | ||||
| 15 | W11683241 | Assembly, Led Light Module (Replaces: W10637153) |
|
Immediately | $ 271.97 | ||||
| 16 | W11501035 | Cover, Water Filter (Replaces: W10300482) |
|
$ 15.70 | |||||
| 17 | WPW10439624 | Assembly, Evaporator Fan (Replaces: W10439624) |
|
Immediately | $ 338.17 | ||||
| 18 | WPW10451893 | Assembly, Evaporator Insulation With Fan (Replaces: W10780938) |
|
$ 286.61 | |||||
| 19 | W11028224 | Support, Evaporator (left Hand) (Replaces: W10223366) |
|
$ 11.98 | |||||
| 20 | W10837626 | Support, Evaporator (right Hand) (Replaces: W10223364) |
|
$ 75.86 | |||||
| 21 | W11702233 | Gasket, Rear (Replaces: W10260462) |
|
$ 45.02 | |||||
| 22 | W11676537 | Gasket, Upper (Replaces: W10387387) |
|
$ 26.24 | |||||
| 23 | W11676538 | Gasket, Rear (Replaces: W10394945) |
|
$ 27.06 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10253327 | Assembly, 10 Led Jumper Wire |
|
- |
