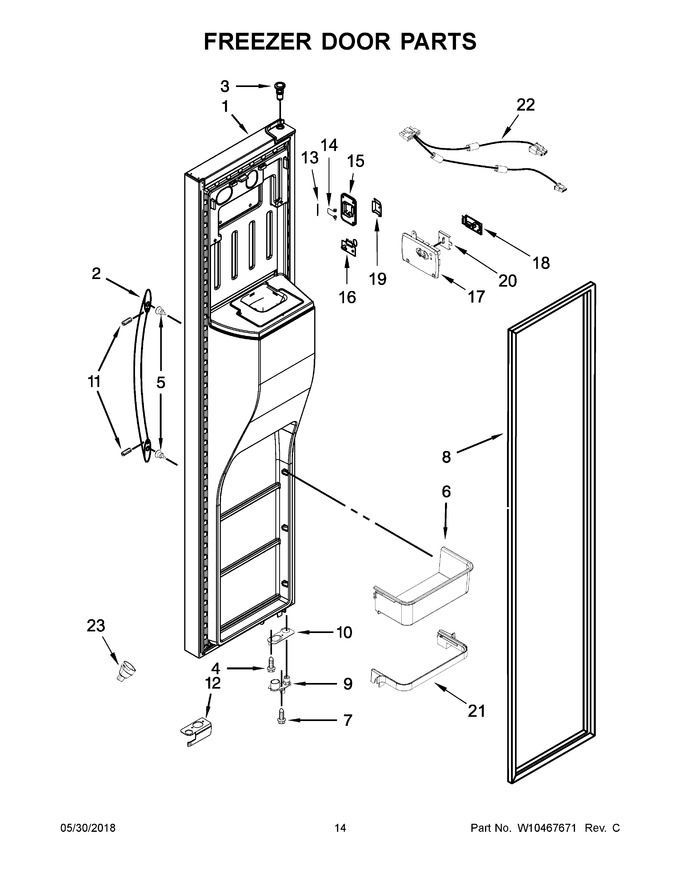

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10367514 | Door, Freezer (includes Item 8 And Dispenser Front Parts) (white) |
|
- | |||||
| 2 | WPW10314515 | Handle (white) (Replaces: W10314515) |
|
$ 238.49 | |||||
| 3 | WP2182181 | Thimble, Top (Replaces: 2200086) |
|
$ 8.15 | |||||
| 4 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 11.39 | |||||
| 5 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 6 | WPW10434529 | Bin, Door (Replaces: W10434529) |
|
$ 77.78 | |||||
| 7 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 8.06 | |||||
| 8 | W11625001 | Gasket, Door (beige) (Replaces: W10249911) |
|
$ 318.78 | |||||
| 9 | WPW10248015 | Closer, Upper Cam Door (white) (Replaces: W10248015) |
|
$ 12.85 | |||||
| 10 | W11293380 | Bracket, Door Stop (Replaces: W10247907) |
|
$ 69.21 | |||||
| 11 | WP3400203 | Screw, Set (Replaces: W10287054) |
|
Immediately | $ 5.04 | ||||
| 12 | W10632059 | Cover, Door Stop (white) |
|
$ 23.46 | |||||
| 13 | WP2198634 | Pin, Door (Replaces: 2198634) |
|
$ 18.65 | |||||
| 14 | WP2198635 | Spring, Door (Replaces: 2198635) |
|
$ 91.43 | |||||
| 15 | W10258502 | Cover, Emitter |
|
$ 89.74 | |||||
| 16 | W10870822 | Board, Emitter Circuit (Replaces: W10518659) |
|
Immediately | $ 222.54 | ||||
| 17 | W10363396 | Cover, Receiver |
|
$ 79.77 | |||||
| 18 | W11813704 | Board, Receiver Circuit (Replaces: W10518658) |
|
Immediately | $ 328.97 | ||||
| 19 | WPW10258520 | Door, Emitter (Replaces: W10258520) |
|
$ 79.65 | |||||
| 20 | W10258540 | Slide, Icemaker Shut Off |
|
$ 11.15 | |||||
| 21 | WPW10494336 | Frame, Door Bin (Replaces: W10494336) |
|
$ 243.61 | |||||
| 22 | W10411699 | Harness, Emitter And Receiver |
|
$ 152.79 | |||||
| 23 | W10258479 | Cover, Wiring Connector |
|
- | |||||
| 12A | W10632060 | Cover, Door Stop (black) |
|
$ 22.30 | |||||
| 12B | WPW10632062 | Cover, Door Stop (grey) (Replaces: W10632062) |
|
$ 7.55 | |||||
| 1A | W10367515 | Door, Freezer (includes Item 8 And Dispenser Front Parts) (black) |
|
- | |||||
| 1B | W10367517 | Door, Freezer (includes Item 8 And Dispenser Front Parts) (stainless) |
|
- | |||||
| 2A | W10314516 | Handle (black) |
|
- | |||||
| 2B | WPW10314517K | Handle (stainless) (Replaces: W10314517) |
|
$ 243.37 | |||||
| 8A | W10249915 | Gasket, Door (black) |
|
- | |||||
| 8B | W10355591 | Gasket, Door (grey) (Replaces: W10249919) |
|
Immediately | $ 327.46 | ||||
| 9A | W11607100 | Closer, Upper Cam Door (black) (Replaces: W10257204) |
|
Immediately | $ 13.98 | ||||
| 9B | WPW10257206 | Closer, Upper Cam Door (grey) (Replaces: W10257206) |
|
Immediately | $ 13.18 |
