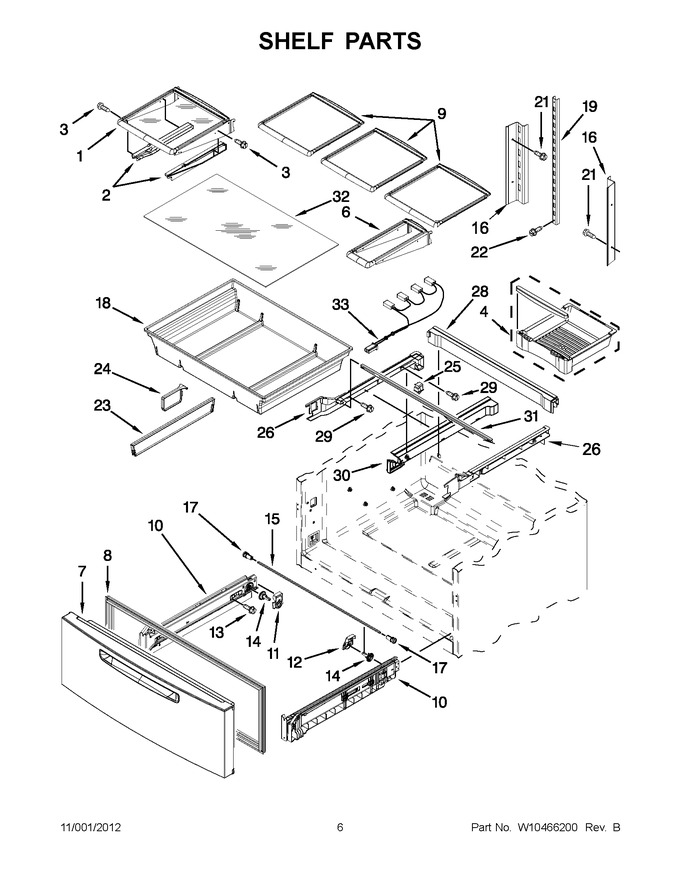

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP12883508SP | Shelf, Glass (Replaces: 12883508SP) |
|
$ 320.63 | |||||
| 2 | WPW10194031 | Glide, Snack Pan (left Hand) (Replaces: W10194031) |
|
$ 131.43 | |||||
| 2 | WPW10194032 | Glide, Snack Pan (right Hand) (Replaces: W10194032) |
|
$ 127.69 | |||||
| 3 | W11233072 | Screw (Replaces: 12990302SP) |
|
Immediately | $ 14.72 | ||||
| 4 | WPW10319333 | Pan-snack (Replaces: W10319333) |
|
$ 144.96 | |||||
| 6 | W11197490 | Shelf, Mini (stationary) (Replaces: 12885501) |
|
$ 242.05 | |||||
| 7 | 13107110B | Pantry Door (black) |
|
- | |||||
| 7 | 13107110W | Pantry Door (white) |
|
- | |||||
| 7 | 13107110S | Pantry Door (stainless) |
|
- | |||||
| 8 | W10443325 | Gasket-pantry (white) |
|
Immediately | $ 301.95 | ||||
| 8 | W11625002 | Gasket-pantry (black) (Replaces: W10436255) |
|
$ 243.13 | |||||
| 8 | WPW10443326 | Gasket-pantry (grey) (Replaces: W10443326) |
|
$ 347.67 | |||||
| 9 | W11402525 | Shelf, Glide Out (Replaces: 12883507) |
|
$ 234.44 | |||||
| 10 | W11093713 | Adapter, Pantry (left Hand) (Replaces: W10295155) |
|
$ 141.44 | |||||
| 10 | W11093714 | Adapter, Pantry (right Hand) (Replaces: W10295157) |
|
$ 138.32 | |||||
| 11 | W10277360 | Gear, Spur |
|
$ 31.85 | |||||
| 12 | W10284709 | Cover, Gear (left Hand) |
|
$ 73.89 | |||||
| 12 | W10294414 | Cover, Gear (right Hand) |
|
$ 83.48 | |||||
| 13 | WPW10272364 | Screw (Replaces: W10272364) |
|
Immediately | $ 11.36 | ||||
| 14 | 67006529 | Screw (Replaces: 12991701) |
|
$ 13.47 | |||||
| 15 | W10298176 | Shaft-rack |
|
- | |||||
| 16 | W10251968 | Ladder, Side (left Hand) |
|
$ 27.38 | |||||
| 16 | W10251965 | Ladder, Side (right Hand) |
|
$ 31.08 | |||||
| 17 | WPW10277361 | Collar-gear (Replaces: W10277361) |
|
$ 12.09 | |||||
| 18 | WPW10457961 | Pan, Pantry (Replaces: W10457961) |
|
$ 373.99 | |||||
| 19 | W10273464 | Ladder, Center |
|
Immediately | $ 30.19 | ||||
| 21 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 22 | W10709795 | Screw (Replaces: 12990515) |
|
$ 13.79 | |||||
| 23 | W11340457 | Divider, Pantry (Replaces: W10458683) |
|
$ 42.21 | |||||
| 24 | W10458684 | Divider, Sliding |
|
- | |||||
| 25 | W11291138 | Switch-rocker (Replaces: 12466104) |
|
Immediately | $ 36.67 | ||||
| 26 | W11715934 | Rail, Pantry (right Hand) (Replaces: W10311726) |
|
$ 45.82 | |||||
| 26 | W10311723 | Rail, Pantry (left Hand) |
|
$ 142.03 | |||||
| 28 | W10311727 | Rail-rear Pantry |
|
- | |||||
| 29 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 30 | W10311725 | Cover, Pantry Rail (left Hand) |
|
$ 18.24 | |||||
| 31 | WP12227305WD | Brace, Crisper Cover (Replaces: 12227305WD) |
|
$ 108.36 | |||||
| 32 | WPW10296571 | Glass-pantry Shelf (Replaces: W10296571) |
|
$ 247.10 | |||||
| 33 | W10335721 | Harness-rc-led |
|
- |
