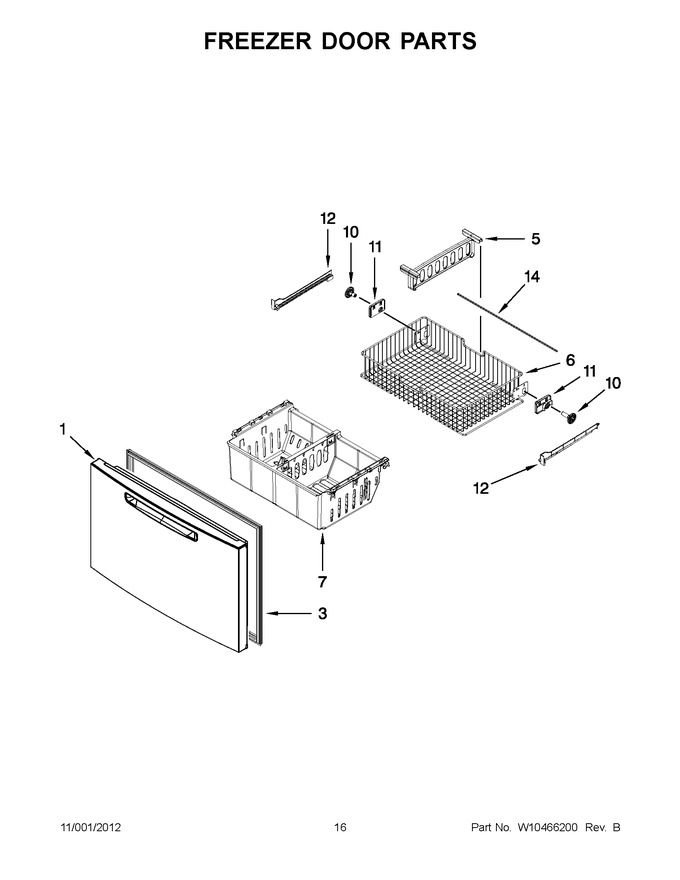

08 - Freezer Door Parts


09 - Dispenser Front Parts


10 - Unit Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13107109W		Freezer Door (white)		Appelez-nous	-
1	13107109B		Freezer Door (black)		Appelez-nous	-
1	13107109S		Freezer Door (stainless)		Appelez-nous	-
3	WPW10714545		Gasket, Door (grey)   (Replaces: W10443322)				$ 323.60
3	WPW10436253		Gasket, Door (black)   (Replaces: W10436253)				$ 360.89
3	WPW10443321		Gasket, Door (white)   (Replaces: W10443321)				$ 359.84
5	W10146439		Divider, Upper (basket)				$ 32.66
6	W11218042		Basket, Upper   (Replaces: W10348249)				$ 203.43
7	WPW10293682		Bin, Lower   (Replaces: W10293682)				$ 181.18
10	WPW10474716		Gear Spur (left Hand)   (Replaces: W10474716)			Immediately	$ 32.42
10	WPW10474715		Gear Spur (right Hand)   (Replaces: W10474715)			Immediately	$ 32.76
11	W10348259		Gear Mount (left Hand)				$ 89.87
11	W10348260		Gear Mount (right Hand)				$ 89.90
12	W11489994		Rack (right Hand)   (Replaces: W10516602)				$ 23.46
12	W11489993		Rack (left Hand)   (Replaces: W10516603)				$ 23.46
14	W11173556		Shaft, Rack   (Replaces: 12812904WD)				$ 32.38
