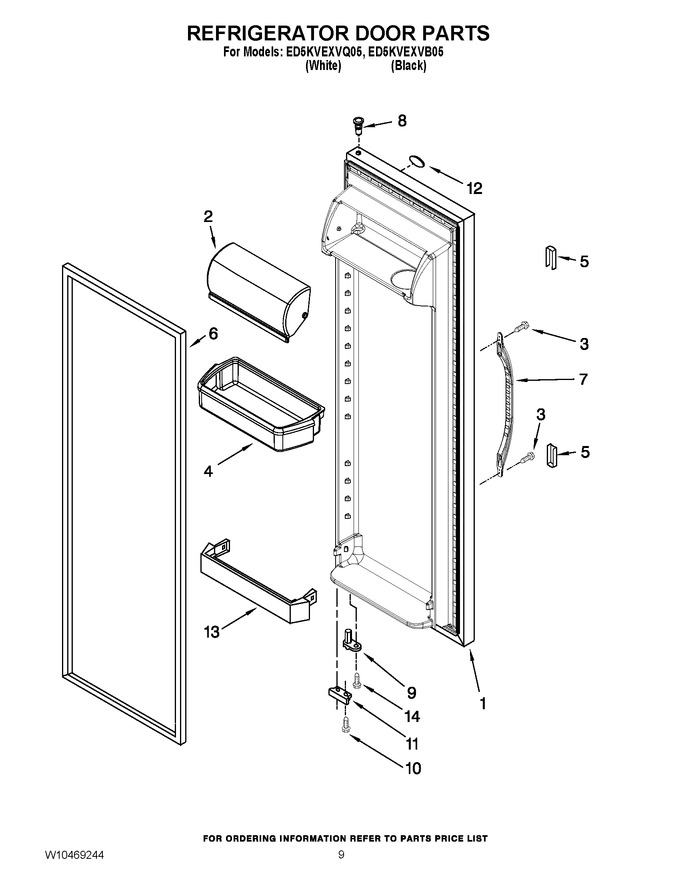

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2206825B		Refrigerator Door (includes Item 6) (black)		Appelez-nous	-
1	2206825W		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 89.42
3	WP489491		Screw 8-18 X 5/8   (Replaces: 489491)				$ 7.30
4	WP2187172		Door Bin   (Replaces: 2187172)			Immediately	$ 45.09
5	WP2194272B		Trim, Handle (black)   (Replaces: 2194272B)				$ 7.30
5	2194272W		Trim, Handle (white)				$ 5.85
6	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221302)			Immediately	$ 333.00
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
7	W10285540		Handle (black)				$ 71.85
7	W10285542		Handle (white)				$ 71.46
8	WP2182181		Thimble-top   (Replaces: 2308091)				$ 8.15
9	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
10	WPW10142233		Screw 10-32 X 1/2   (Replaces: W10142233)				$ 8.93
11	W10219811		Bracket, Door Stop (white)				$ 25.43
11	W10219812		Bracket, Door Stop (black)				$ 24.48
12	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 93.18
13	WP2156022		Trivet, Shelf   (Replaces: 2156022)			Immediately	$ 72.80
14	WP3400012		Screw 10-32 X 1/2   (Replaces: W10142285)				$ 8.26
