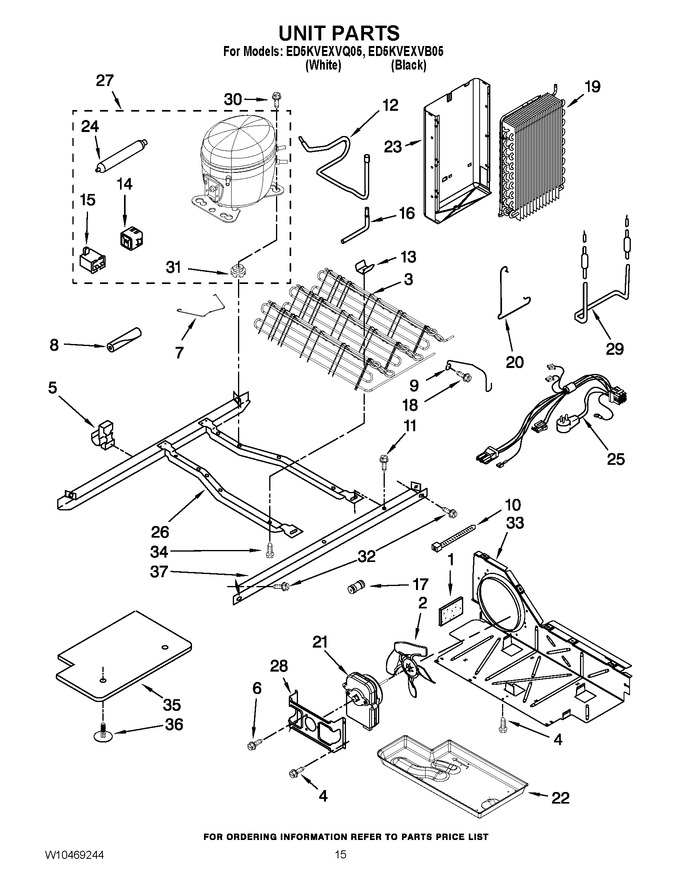

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2217070		Pad, Foam				$ 22.08
2	W10156818		Fan, Blade   (Replaces: 12825802)			Immediately	$ 62.11
3	2324712		Condenser Assembly   (Replaces: W10121484)				$ 323.45
4	WP489464		Screw 8-18 X 1/2   (Replaces: W10001250)			Immediately	$ 8.38
5	2208280		Clip, Wire		Appelez-nous	-
6	WP8533993		Screw 7-18 X 1/2   (Replaces: 8533993)				$ 11.21
7	W10204187		Clip, Retaining		Appelez-nous	-
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
9	2260517		Guard, Fan		Appelez-nous	-
10	WPW10339879		Strap   (Replaces: 2172840)				$ 8.30
11	WP489427		Screw 1/4-20 X 5/8   (Replaces: W10146358)				$ 7.84
12	2205765		Tube Suction				$ 36.04
13	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 19.38
14	WPW10189190		Start Device, Combination (start Relay And Overload)   (Replaces: W10197427)			Immediately	$ 131.29
15	WPW10662129		Capacitor   (Replaces: 2264017)			Immediately	$ 58.86
16	W10325116		Process Tube		Appelez-nous	-
17	WPW10334458		Connector   (Replaces: W10271540)				$ 22.67
18	WP489478		Screw 8-18 X 1/2   (Replaces: W10001260)				$ 8.18
19	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 381.49
20	2161324		Clamp		Appelez-nous	-
21	WP2188874		Fan, Motor   (Replaces: 2188874)			Immediately	$ 113.96
22	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
23	2217194		Heat Shield		Appelez-nous	-
24	WPW10143759		Drier   (Replaces: W10423407)			Immediately	$ 30.78
25	WPW10309395		Unit, Harness (includes Power Cord)   (Replaces: W10309395)				$ 308.35
26	W10196321		Unit, Harness (includes Power Cord)		Appelez-nous	-
27	W10139462		Compressor (includes Items 14, 15, 24, & 31) (also Order 876765 Tube Kit)   (Replaces: W10120459)				$ 668.33
28	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 12.93
29	WP2323198		Heater, Defrost   (Replaces: 2323198)			Immediately	$ 90.70
30	876811		Screw 1/4-28 X .90   (Replaces: 489373)				$ 7.79
31	876811		Grommet   (Replaces: 1100826)				$ 7.79
32	489340		Screw 5/16 X .63		Appelez-nous	-
33	W10896764		Air Baffle   (Replaces: W10411518)				$ 101.20
34	W11544659		Screw 8-18 X 1-1/4   (Replaces: 8281232)				$ 14.35
35	2304899		Unit Cover, Bottom (includes Item 36)		Appelez-nous	-
36	489396		Clip				$ 11.26
37	2305374		Unit Mounting Rail				$ 84.67
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 137.25
NI	876764		Valve, Access (3/16``)			Immediately	$ 95.92
NI	N/P		Refrigerant Charge (5.0 Oz. (r-134a))		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access (5/16``)			Immediately	$ 134.49
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
