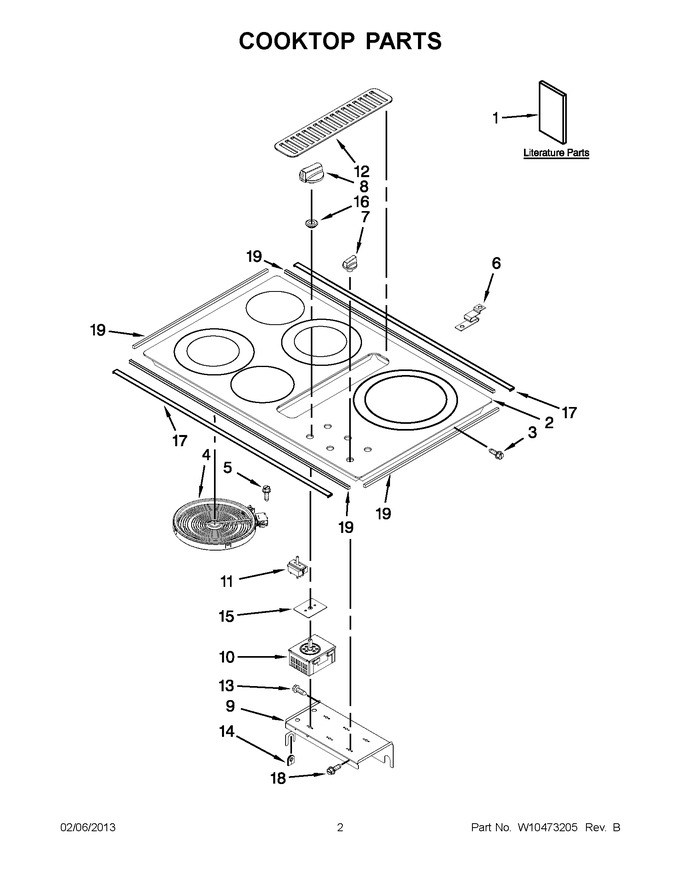

01 - Cooktop Parts
02 - Blower Unit Parts
03 - Burner Box Parts
04 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10298568 | Installation Instructions |
|
- | |||||
| 1 | W10296511 | Use & Care Guide |
|
- | |||||
| 1 | 8106P068-60 | Card, Flow Tester |
|
$ 6.65 | |||||
| 1 | W10436013 | Tech Sheet |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 2 | W10473507 | Top, Main |
|
$ 537.66 | |||||
| 3 | WPY706189 | Screw (Replaces: 7101P427-60) |
|
Immediately | $ 7.55 | ||||
| 4 | WP7406P497-60 | Element, Warmer (100w) (center Front) (Replaces: 7406P497-60) |
|
Immediately | $ 155.09 | ||||
| 4 | WPW10221529 | Element, Dual (2200w) (left Front & Center Rear) (Replaces: W10221529) |
|
$ 355.46 | |||||
| 4 | W11171119 | Element (1200w) (left Rear) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 4 | WPW10204680 | Element, Dual (2700w) (right Rear) (Replaces: W10204680) |
|
Immediately | $ 403.75 | ||||
| 5 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 6 | 8004P093-60 | Support,element |
|
$ 10.61 | |||||
| 7 | W10298840 | Switch, Fan |
|
$ 44.86 | |||||
| 8 | WPW10298835 | Knob, Control (Replaces: W10298835) |
|
$ 24.69 | |||||
| 9 | W10161712 | Plate, Switch |
|
- | |||||
| 10 | WPW10215034 | Switch, Control (left Front & Center Rear) (Replaces: W10215034) |
|
Immediately | $ 249.50 | ||||
| 10 | WPW10234425 | Switch, Control (right Rear) (Replaces: W10234425) |
|
Immediately | $ 227.56 | ||||
| 10 | WPW10222828 | Switch, Control (left Rear) (Replaces: W10222828) |
|
Immediately | $ 289.40 | ||||
| 10 | WP7403P238-60 | Switch, Infinite (center Front) (Replaces: 7403P373-60) |
|
Immediately | $ 64.20 | ||||
| 11 | WP4456836 | Switch, Blower (Replaces: 4456836) |
|
Immediately | $ 175.74 | ||||
| 12 | WPW10205094 | Grille, Air (Replaces: W10205094) |
|
$ 255.44 | |||||
| 13 | WPY706189 | Screw (Replaces: 7101P427-60) |
|
Immediately | $ 7.55 | ||||
| 14 | 8008P068-60 | Grommet, Wire |
|
$ 16.79 | |||||
| 15 | WP71002569 | Gasket, Infinite Switch (Replaces: 7201P077-60) |
|
Immediately | $ 10.57 | ||||
| 16 | WPW10293874 | Grommet, Switch (Replaces: W10293874) |
|
Immediately | $ 8.46 | ||||
| 17 | W10299380 | Trim (stainless Only) (front) |
|
$ 123.67 | |||||
| 17 | W10168884 | Trim (stainless Only) (rear) |
|
$ 166.43 | |||||
| 18 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 7.30 | ||||
| 19 | 12002793 | Tape, Foam (Replaces: 8270P188-60) |
|
$ 82.80 |
