SELECT A DIAGRAM

01 - Cooktop Parts

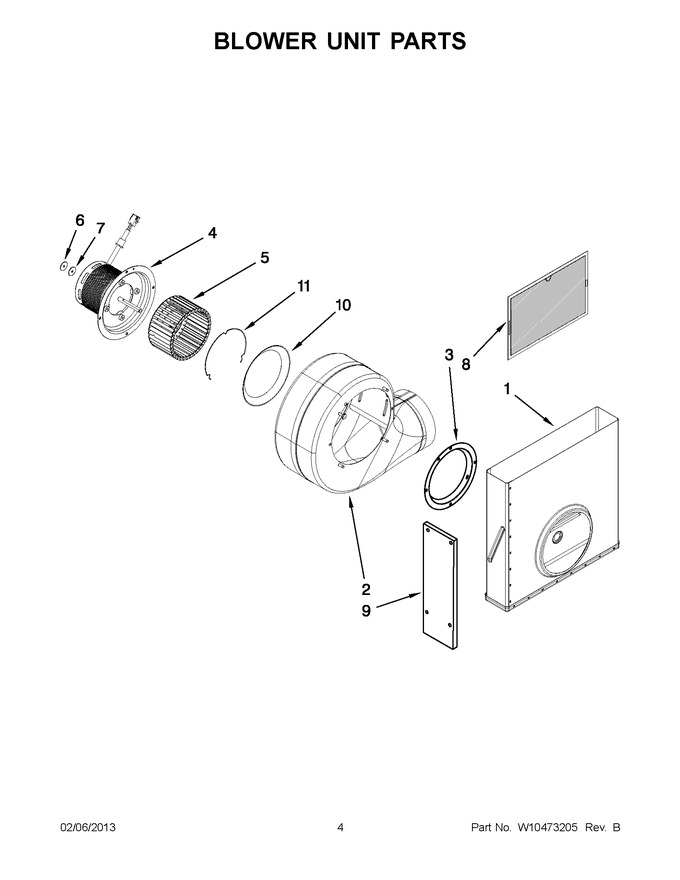

02 - Blower Unit Parts


03 - Burner Box Parts


04 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Assembly,plenum (not Serviced)		Appelez-nous	-
2	2822W001-80		Assembly, Scroll		Appelez-nous	-
3	4026F008-51		Ring, Inlet				$ 7.43
4	W10247585		Motor, Blower				$ 274.18
5	WPY707985		Wheel, Blower   (Replaces: 7114P005-60)			Immediately	$ 161.72
6	WPY707702		Nut, Lock   (Replaces: 7103P162-60)			Immediately	$ 7.30
7	7109P086-60		Washer		Appelez-nous	-
8	W10348342		Filter, Grease		Appelez-nous	-
9	8312P151-60		Guard, Blower		Appelez-nous	-
10	8038P003-60		Retainer				$ 9.13
11	4026F009-51		Ring, Restrictor				$ 51.50

    View Diagram in Separate Window       Print Part List
