SELECT A DIAGRAM

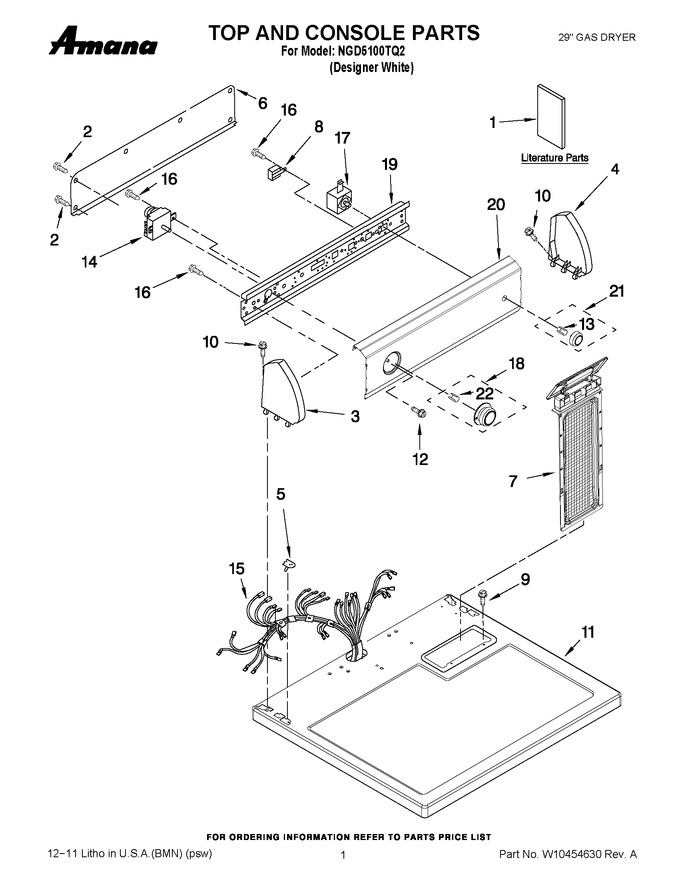

01 - Top And Console Parts


02 - Cabinet Parts


03 - W10336852 Burner Assembly


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10185979		Wiring Diagram Sheet,		Appelez-nous	-
1	W10287572		Use & Care Guide		Appelez-nous	-
1	W10115228		Installation Instructions		Appelez-nous	-
2	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.55
3	8271359		Cap, End (l.h.)		Appelez-nous	-
4	8271365		Cap, End (r.h.)		Appelez-nous	-
5	WP357213		Nut, Push-in   (Replaces: 357213)				$ 7.76
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
7	W10874409		Screen, Lint   (Replaces: 8558467)			Immediately	$ 67.01
8	WP694419		Mini-buzzer   (Replaces: 694419)				$ 134.05
9	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
10	WP388326		Screw   (Replaces: 388326)				$ 9.29
11	8557930		Top		Appelez-nous	-
12	3400859		Screw, 8-18 X 7/32   (Replaces: 8533951)				$ 13.88
13	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
14	WPW10185971		Timer   (Replaces: W10185971)				$ 318.41
15	W10111051		Harness, Wiring		Appelez-nous	-
16	WP90767		Screw, 8-18 X 5/16   (Replaces: 90767)			Immediately	$ 8.25
17	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
18	W10110048		Timer Knob & Dial		Appelez-nous	-
19	8271418		Bracket, Control				$ 57.15
20	W10182636		Panel, Control		Appelez-nous	-
21	WPW10110049		Knob, Push-to-start   (Replaces: W10110049)				$ 52.86
22	WP8536939		Spring-clip Knob   (Replaces: 8536939)			Immediately	$ 8.20

    View Diagram in Separate Window       Print Part List
