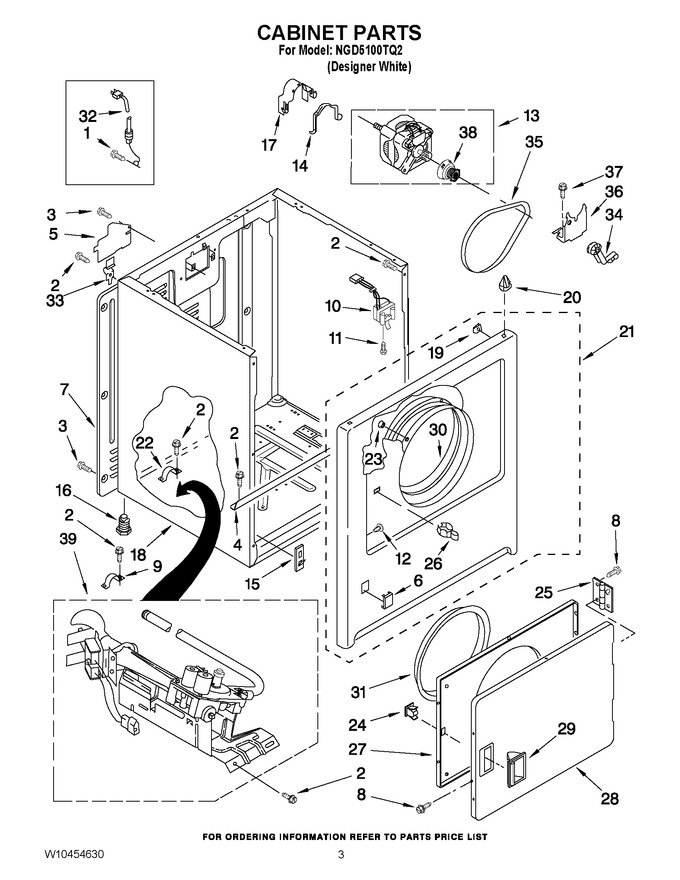

02 - Cabinet Parts
03 - W10336852 Burner Assembly
04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3390631 | Screw, 10-32 X 5/8 (Replaces: 3390631) |
|
$ 8.25 | |||||
| 2 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | W10236073 | Bracket, Cabinet |
|
- | |||||
| 5 | W11539855 | Cover, Block (Replaces: 3396795) |
|
Immediately | $ 629.75 | ||||
| 6 | W10811916 | Plug, Front Panel (Replaces: 8564457) |
|
$ 16.50 | |||||
| 7 | 3396807 | Panel, Rear |
|
- | |||||
| 8 | WP488627 | Screw, 8-18 X 1/2 (Replaces: 342055) |
|
$ 8.11 | |||||
| 9 | 341029 | Clamp-elbow (Replaces: 3980175) |
|
- | |||||
| 10 | WP3406105 | Door Switch Assembly (Replaces: 3406104) |
|
Immediately | $ 36.90 | ||||
| 11 | WP3395530 | Screw, 6-20 X 7/8 (Replaces: 697773) |
|
$ 8.57 | |||||
| 12 | WP3404413 | Plug-hole (Replaces: 3404413) |
|
Immediately | $ 8.35 | ||||
| 13 | 279827 | Motor, 60 Hz. (Replaces: W10194250) |
|
Immediately | $ 191.95 | ||||
| 14 | WPW10121316 | Clamp-motor (Replaces: W10121316) |
|
Immediately | $ 26.96 | ||||
| 15 | W10854425 | Clip, Front Panel (Replaces: 3394083) |
|
Immediately | $ 16.34 | ||||
| 16 | 49621 | Foot, Dryer (4) (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 17 | WP3404162 | Clamp, Motor (with Shield) (Replaces: 3404162) |
|
Immediately | $ 8.21 | ||||
| 18 | 8533643 | Cabinet (includes Illus. 4) (Replaces: 8530603) |
|
$ 419.22 | |||||
| 19 | WP98234 | Clip, Ground (2) (Replaces: 98234) |
|
Immediately | $ 11.96 | ||||
| 20 | WP18776 | Lock, Front Top (2) (Replaces: 690363) |
|
Immediately | $ 13.31 | ||||
| 21 | 3403574 | Front Panel Assembly |
|
- | |||||
| 22 | 341029 | Clamp-pipe |
|
- | |||||
| 23 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 23.55 | |||||
| 24 | 279570 | Catch, Door (Replaces: 690081) |
|
Immediately | $ 8.89 | ||||
| 25 | WPW10362431 | Hinge & Pin Assembly (2) (Replaces: W10362431) |
|
Immediately | $ 8.28 | ||||
| 26 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 27 | 3403371 | Door, Rear |
|
$ 77.01 | |||||
| 28 | WP3403361 | Door, Front (Replaces: 3403361) |
|
$ 190.53 | |||||
| 29 | WP3405184 | Handle, Door (Replaces: 3405184) |
|
$ 79.81 | |||||
| 30 | 279264 | Seal & Bearing Assembly (Replaces: 8066124) |
|
Immediately | $ 74.52 | ||||
| 31 | W10861521 | Seal, Door (Replaces: 3405245) |
|
Immediately | $ 58.69 | ||||
| 32 | W11222083 | Cord, Power (Replaces: W10440460) |
|
$ 126.62 | |||||
| 33 | WP8066217 | Hinge, Top (Replaces: 8066217) |
|
$ 8.21 | |||||
| 34 | WP691362 | Idler & Pulley Assembly (Replaces: 691362) |
|
$ 8.62 | |||||
| 35 | 341241 | Belt, Drive (Replaces: W10131364) |
|
Immediately | $ 18.15 | ||||
| 36 | WP348780 | Base Motor (Replaces: 348780) |
|
Immediately | $ 127.65 | ||||
| 37 | 3400500 | Bolt, 5/16 - 18 X 3/4 |
|
Immediately | $ 14.04 | ||||
| 38 | WP8066184 | Pulley, 60 Hz. (Replaces: 8066184) |
|
Immediately | $ 51.02 | ||||
| 39 | W10823508 | Burner Assembly, 60 Hz. (refer To Pages 5 & 6 For Further Breakdown) (Replaces: W10336852) |
|
$ 541.24 |
