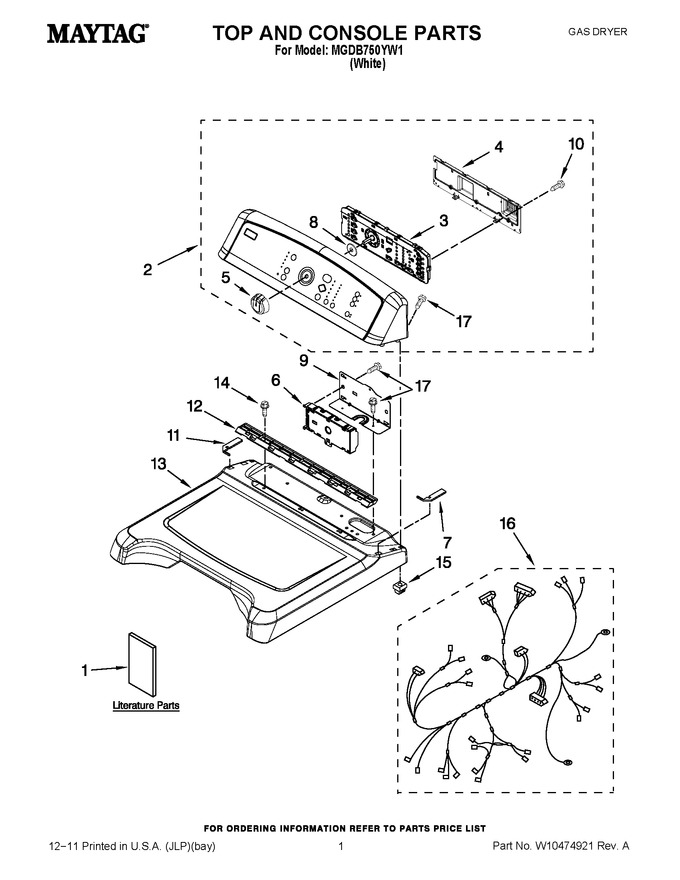

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8557891 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10388780		Guide, Use & Care		Appelez-nous	-
1	W10392126		Installation, Instruction		Appelez-nous	-
1	W10393006		Tech, Sheet		Appelez-nous	-
2	W10338343		Panel, Console				$ 339.97
3	WPW10388672		User Interface Assembly   (Replaces: W10388672)				$ 339.48
4	W10051124		Cover, Ui Assembly				$ 263.67
5	WPW10338554		Knob, Assembly   (Replaces: W10338554)				$ 64.58
6	WPW10432257		Control Electronic   (Replaces: W10432257)			Immediately	$ 333.62
7	W10219694		Seal, Top (right Hand)		Appelez-nous	-
8	8572039		Seal, Ui		Appelez-nous	-
9	8563853		Bracket, Machine Controller		Appelez-nous	-
10	WP4449745		Screw, 6-19 X 1/2   (Replaces: W10003770)				$ 7.98
11	W10219695		Seal, Top (left Hand)		Appelez-nous	-
12	8558863		Bracket, Console				$ 33.78
13	W10223157		Top				$ 159.40
14	WP33001882		Screw, 8-18 X 1/2   (Replaces: 337686)				$ 83.71
15	W10112673		Clip, Console				$ 9.75
16	W10393460		Harness, Wiring		Appelez-nous	-
17	W10131402		Screw		Appelez-nous	-
