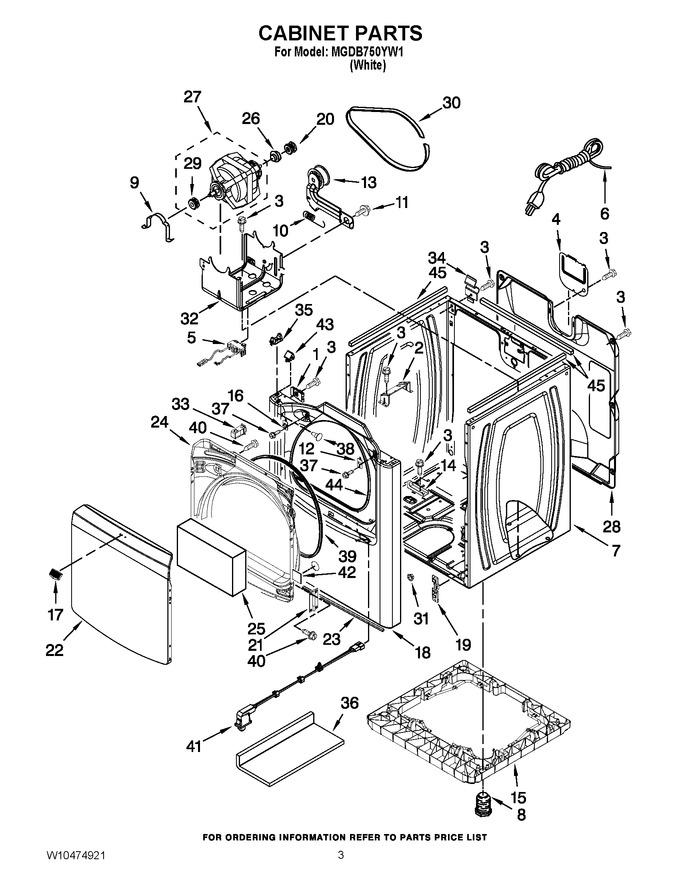

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8557891 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10007520		Clip, Ground				$ 30.94
2	8544753		Bracket, Burner		Appelez-nous	-
3	WP3390631		Screw, 10-16 X 3/8   (Replaces: 3390631)				$ 8.25
4	W11736322		Plate, Cover Terminal Block   (Replaces: 8558833)		Appelez-nous	-
5	WPW10411937		Switch, Broken Belt   (Replaces: W10314253)			Immediately	$ 36.06
6	W11222083		Cord, Power   (Replaces: W10440460)				$ 126.62
7	W10223154		Cabinet				$ 354.38
8	W10813918		Foot, Dryer   (Replaces: W10363894)			Immediately	$ 13.70
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 8.22
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.62
12	WPW10111888		Plug, Strike   (Replaces: W10111888)				$ 29.69
13	WPW10547292		Pulley Assembly   (Replaces: 8547160)			Immediately	$ 43.98
14	W10201446		Bracket, Pipe		Appelez-nous	-
15	W10363887		Riser		Appelez-nous	-
16	W10295405		Strike & Plate Assembly   (Replaces: W10111906)				$ 115.09
17	W10492808		Badge Assembly   (Replaces: W10323735)				$ 59.82
18	W10235342		Front Panel & Foam Seal Assembly		Appelez-nous	-
19	W10854425		Clip, Front Panel   (Replaces: 3394083)			Immediately	$ 16.34
20	W10136930		Pulley, Drum Roller				$ 48.18
21	WP8565018		Hinge Assembly   (Replaces: 8579717)				$ 115.34
22	WPW10111876		Door, Outer   (Replaces: W10111876)				$ 205.13
23	WPW10224768		Seal, Foam   (Replaces: W10224768)				$ 75.69
24	W10111879		Door, Inner				$ 80.48
25	W10111867		Filler, Door		Appelez-nous	-
26	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 139.08
27	WPW10448896		Motor, Assembly 60 Hz.   (Replaces: W10136932)			Immediately	$ 343.09
28	8558830		Panel, Rear				$ 139.44
29	W10139247		Pulley, Blower			Immediately	$ 133.55
30	WPW10136934		Belt, Drive   (Replaces: W10136934)			Immediately	$ 48.60
31	W10144494		Hole, Plug (cabinet Base)				$ 35.14
32	8547158		Bracket, Motor				$ 65.31
33	WPW10111905		Door Catch Assembly   (Replaces: W10111905)			Immediately	$ 7.59
34	WP8066217		Hinge, Top   (Replaces: 238088)				$ 8.21
35	WP8568303		Locator, Snap Down   (Replaces: 8568303)				$ 7.94
36	W11037143		Cover, Door Switch   (Replaces: W10215725)		Appelez-nous	-
37	WP3400805		Screw, 8-18 X 3/8   (Replaces: 3400805)				$ 7.55
38	W10144494		Plug, Hole				$ 35.14
39	W10239307		Seal, Door   (Replaces: W10221653)				$ 141.27
40	WP488627		Screw, 8-18 X 1/2   (Replaces: 342055)				$ 8.11
41	WPW10201785		Door Switch Assembly   (Replaces: W10201785)				$ 88.23
42	W10811916		Plug, Front Panel   (Replaces: 8564457)				$ 16.50
43	WP8576625		Lock, Top Front   (Replaces: 8576625)				$ 7.60
44	W10044490		Seal, Front Panel				$ 34.05
45	WPW10157932		Seal, Foam   (Replaces: W10316529)			Immediately	$ 8.45
