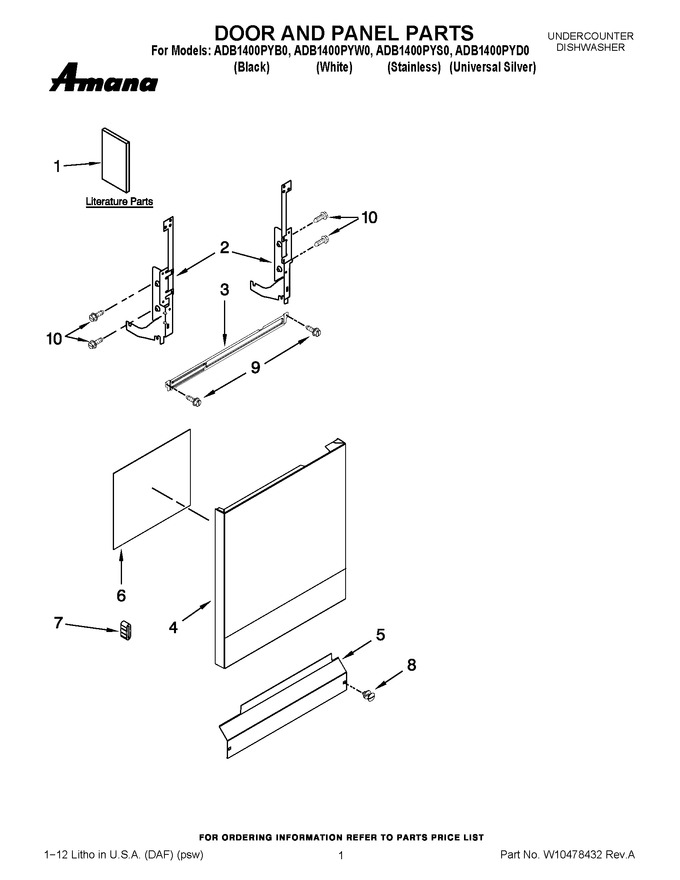

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10321978 | Tech Sheet (french) |
|
- | |||||
| 1 | W10435040 | Installation, Instructions |
|
- | |||||
| 1 | W10447872 | Energy Guide |
|
- | |||||
| 1 | W10380253 | Use & Care Guide |
|
- | |||||
| 1 | W10321977 | Tech Sheet (english) |
|
- | |||||
| 2 | W11613572 | Arm, Hinge (right) (Replaces: W10274921) |
|
Immediately | $ 78.37 | ||||
| 2 | W11806566 | Arm, Hinge (left) (Replaces: W10274922) |
|
Immediately | $ 66.52 | ||||
| 3 | W10850371 | Stiffener, Door (Replaces: W10195120) |
|
Immediately | $ 31.31 | ||||
| 4 | WPW10274902 | Panel Front (stainless) (Replaces: W10274902) |
|
Immediately | $ 374.34 | ||||
| 4 | WPW10274895 | Panel Front (black) (Replaces: W10274895) |
|
$ 369.82 | |||||
| 4 | WPW10274896 | Panel Front (white) (Replaces: W10274896) |
|
$ 345.25 | |||||
| 4 | WPW10274898 | Panel Front (universal Silver) (Replaces: W10274898) |
|
$ 367.80 | |||||
| 5 | W11763736 | Access Panel (black) (Replaces: W10441006) |
|
Immediately | $ 38.79 | ||||
| 5 | WPW10441007 | Access Panel (white) (Replaces: W10441007) |
|
$ 162.80 | |||||
| 6 | WPW10073520 | Insulation, Door Panel (Replaces: W10073520) |
|
$ 91.65 | |||||
| 7 | WP8268961 | Friction Sleeve (Replaces: 8268961) |
|
Immediately | $ 5.93 | ||||
| 8 | WPW10503549 | Fastener (white) (Replaces: W10331793) |
|
Immediately | $ 7.77 | ||||
| 8 | WPW10503548 | Fastener (black) (Replaces: W10331789) |
|
Immediately | $ 30.39 | ||||
| 9 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 7.86 | ||||
| 10 | WPW10109200 | Screw (Replaces: 489470) |
|
Immediately | $ 8.00 |
