Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10447856 Console Asm. (black) Appelez-nous -
1 W10447857 Console Asm. (white) Appelez-nous -
2 W10783730 Box, Connector   (Replaces: W10401190) Special Order $ 29.91

3 WP8269323 Handle, Latch (white)   (Replaces: 8269324) Special Order $ 125.97

3 WP8269323 Handle, Latch (black)   (Replaces: 8269323) Special Order $ 125.97

4 WPW10274884 Bolt, Latch   (Replaces: W10274884) In-Stock Immediately $ 86.34

5 WPW10348413 Screw   (Replaces: W10348413) In-Stock Immediately $ 8.03

6 WP8524471 Actuator, Latch   (Replaces: 8524471) In-Stock Immediately $ 96.46

7 W10375805 Control, Electronic Appelez-nous -
8 WPW10372484 Brace, Connector   (Replaces: W10372484) Special Order $ 21.44

9 WPW10274880 Door Switch   (Replaces: W10274880) In-Stock Immediately $ 78.94

10 W10274843 Button Tree Appelez-nous -
11 W10274837 Light Pipe Special Order $ 21.08


    View Diagram in Separate Window     Print Icon   Print Part List

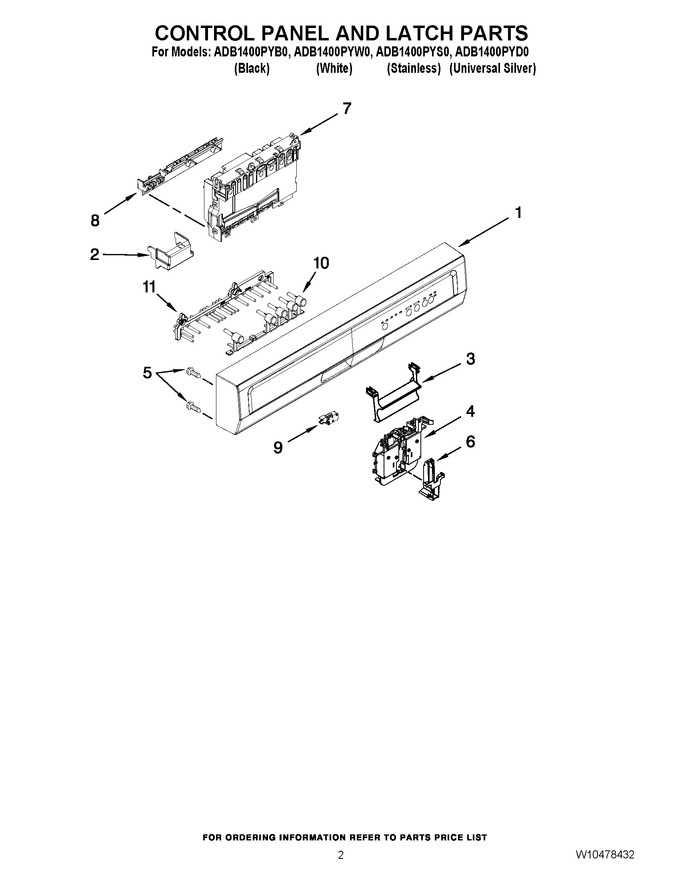

Diagram for ADB1400PYD0
