SELECT A DIAGRAM

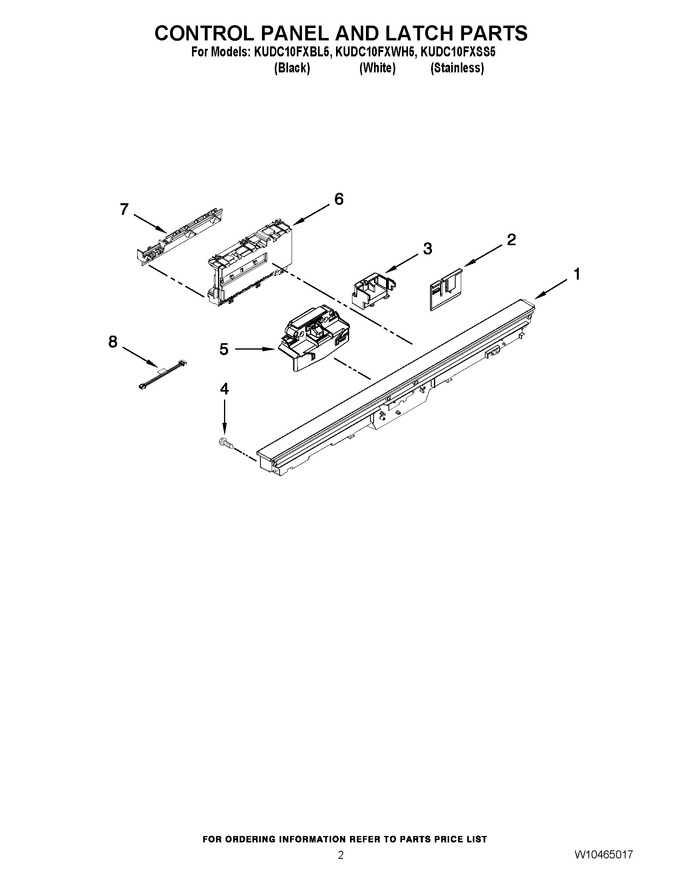

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10338230 | Console Assembly (black) |
|
- | |||||
| 1 | W10338232 | Console Assembly (white) |
|
- | |||||
| 1 | W10195565 | Console Assembly (stainless) |
|
- | |||||
| 2 | W11256107 | Clip, Control (Replaces: W10195237) |
|
$ 23.27 | |||||
| 3 | W10783730 | Box, Connector (Replaces: W10401190) |
|
$ 31.41 | |||||
| 4 | WPW10348409 | Screw (Replaces: W10348409) |
|
Immediately | $ 8.20 | ||||
| 5 | W10619006 | Latch Assembly (includes Switch) (Replaces: W10370003) |
|
Immediately | $ 39.09 | ||||
| 6 | W11035586 | Control, Electronic (Replaces: W10375784) |
|
$ 260.56 | |||||
| 7 | WPW10194937 | Brace, Connector (Replaces: W10194937) |
|
$ 30.56 | |||||
| 8 | WPW10195666 | Jumper, 4 Wire (Replaces: W10195666) |
|
$ 23.12 |
